TSW-112-08-L-S-RA

Headers, Male Pins Overview

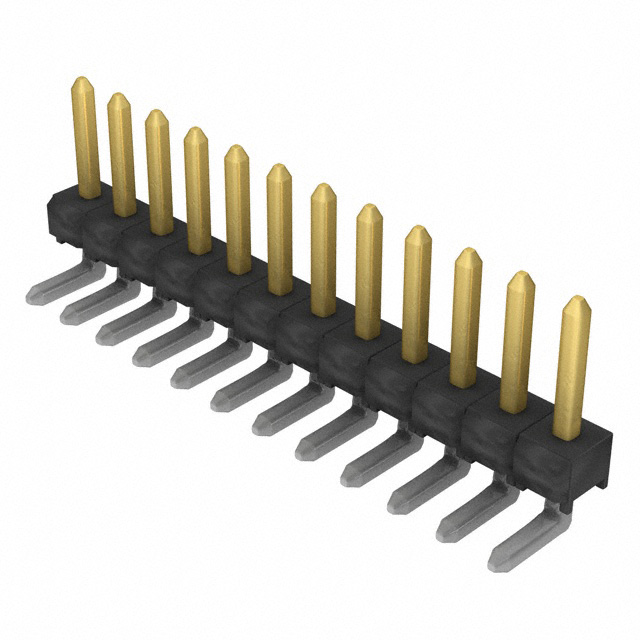

Samtec TSW-112-08-L-S-RA is a single-row, right-angle PCB header strip featuring a 2.54 mm (0.1 in) pitch and 12 positions. Constructed with phosphor bronze contacts and a polybutylene terephthalate (PBT) insulator, it utilizes through-hole solder termination. The component supports operating temperatures from -55°C to +125°C and carries UL 94 V-0 flammability ratings. It provides voltage ratings between 400 VAC and 550 VAC, with current ratings ranging from 4.3 A to 6.3 A depending on configuration.

Headers, Male Pins Feature Summary

• Designed as an Extended Life Product (E.L.P.) achieving high mating cycle endurance and robust corrosion resistance.
• Features square post construction for reliable board-to-board or cable connections.
• Utilizes tin-plated contact surfaces to ensure consistent electrical performance.

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable-to-Board assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm exact plating thickness and material specifications. Ensure the selected variant matches the required current rating and temperature range for the target application environment. Cross-reference the datasheet for precise mechanical dimensions and footprint requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle male header with a 2.54 mm pitch is required. Consider the E.L.P. designation for applications demanding extended service life and higher durability compared to standard headers. Verify that the phosphor bronze contact material and PBT insulation meet the environmental and electrical constraints of the design.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of PCB header strips, offering versatile connectivity solutions. This specific model belongs to the unshrouded, single-row category within the broader TSW family. It serves as a fundamental interconnect element for general-purpose electronic assemblies requiring standardized spacing and reliable mechanical retention.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not replicate the specific E.L.P. durability or precise mechanical tolerances of the original component.
