TSW-113-08-G-S-RA

Headers, Male Pins Overview

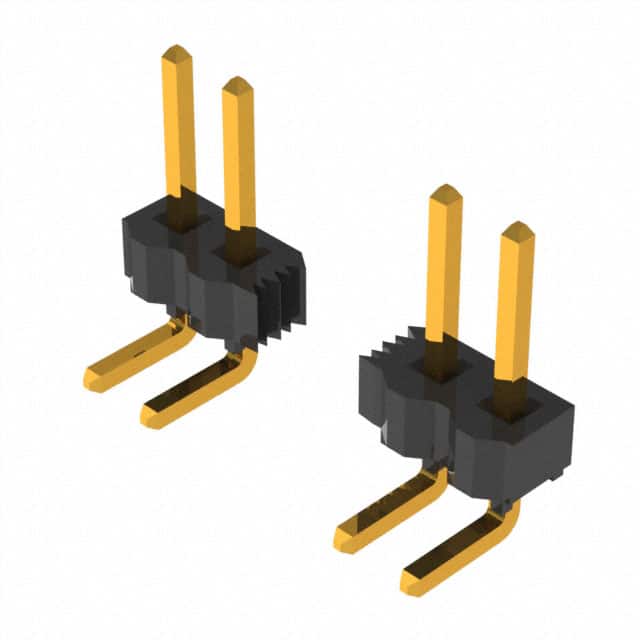

The TSW-113-08-G-S-RA is a single-row, right-angle PCB header manufactured by Samtec Inc. It features 13 positions with a 2.54mm (0.100 inch) pitch. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for through-hole mounting, it supports board-to-board and cable applications. The unit operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for space-efficient PCB integration
• Gold-plated phosphor bronze contacts ensure durable electrical connectivity
• Single-row configuration with standard 2.54mm spacing for universal compatibility

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General-purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the exact part number against official Samtec documentation to confirm pin count and orientation. Ensure that the required current rating and voltage specifications align with your system design before procurement. Cross-reference the contact length and insulation height with your PCB layout constraints to guarantee proper mechanical fit and solder joint integrity during assembly.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row header is required for through-hole implementation. Consider the 13-position count and 2.54mm pitch as primary selection criteria. Evaluate the operating temperature range and material flammability rating against environmental requirements. Confirm that the gold plating thickness meets the necessary conductivity and corrosion resistance standards for the intended application environment.

Headers, Male Pins Part Context

This component belongs to the TSW series of classic PCB header strips from Samtec Inc. The series offers various configurations in terms of position count, row arrangement, and mounting angles. The TSW-113-08-G-S-RA specifically represents a 13-position variant with right-angle orientation and single-row layout, designed for standard industrial and commercial electronics manufacturing processes.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Samtec TSW headers with identical 13-position, single-row, right-angle specifications. Verify that any alternative maintains the same 2.54mm pitch, through-hole termination style, and gold-plated phosphor bronze contact materials to ensure functional equivalence.
