TSW-117-07-F-D

Headers, Male Pins Overview

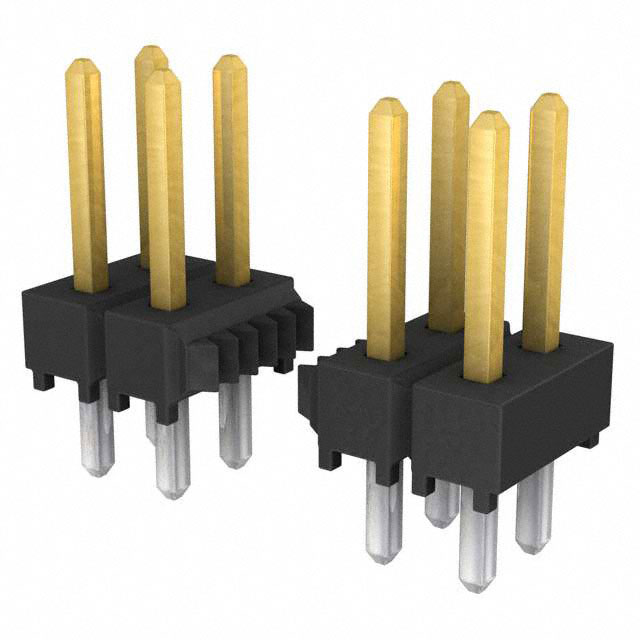

Samtec TSW-117-07-F-D is a classic PCB header strip featuring a 0.100 inch (2.54 mm) pitch and two rows of contacts. It provides 34 total positions with male pin terminals designed for through-hole soldering. The connector utilizes phosphor bronze contacts with gold plating on the mating interface and tin plating on the termination column. Constructed with black polybutylene terephthalate insulation rated UL94 V-0, it supports an operating temperature range from -55°C to +125°C. The design includes a push-pull retention style and square contact shapes.

Headers, Male Pins Feature Summary

• Offers industry-standard 0.100 inch pitch spacing for broad compatibility
• Features gold-plated mating surfaces for reliable signal transmission
• Supports vertical board-to-board or cable interconnect applications
• Utilizes ruggedized phosphor bronze terminal materials

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic circuitry
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact terminal lengths and plating specifications. Ensure the selected variant matches the required current rating and voltage withstand capabilities for the target application environment. Confirm RoHS compliance status if restricted substances are prohibited in the manufacturing process.

Headers, Male Pins Selection Notes

Select this component when standard 0.100 inch spacing is required for rigid PCB mounting. Consider the gold versus tin plating options based on environmental exposure and mating cycle requirements. Evaluate the available pin counts within the TSW series to ensure the 34-position configuration aligns with the circuit density needs without excessive board space usage.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of terminal strips, providing versatile interconnect solutions for standard pitch applications. These headers are widely used in general electronics for their reliability and cost-effectiveness. The TSW-117 designation indicates a specific length and pin count within this extensive family of products.

Headers, Male Pins Replacement Considerations

Compatible mating connectors include SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, and SLW series components. Verify footprint dimensions and contact alignment before substituting with generic equivalents.
