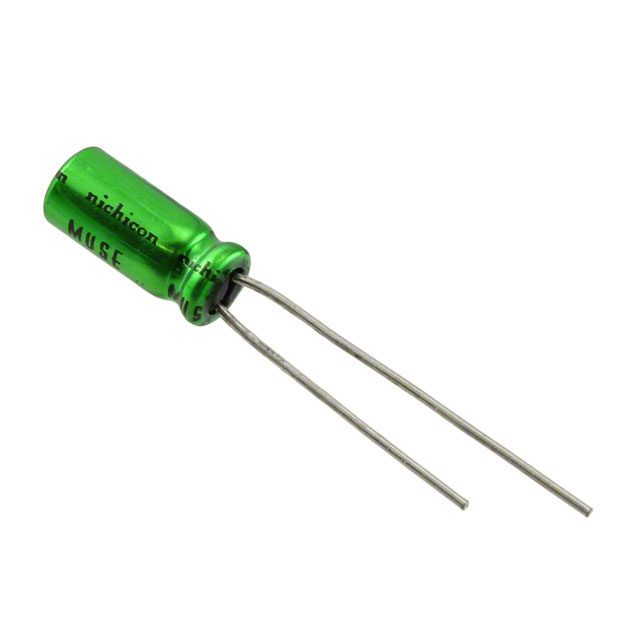

UES0J330MDM1TD

UES0J330MDM1TD is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 33UF 20% 6.3V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UES0J330MDM1TD

• Description：CAP ALUM 33UF 20% 6.3V RADIAL TH
• Series：UES
• Mfr：Nichicon
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：33 µF
• Tolerance：±20%
• Voltage - Rated：6.3 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Bi-Polar
• Ratings：-
• Applications：Audio
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：-
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.197" Dia (5.00mm)
• Height - Seated (Max)：0.492" (12.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
