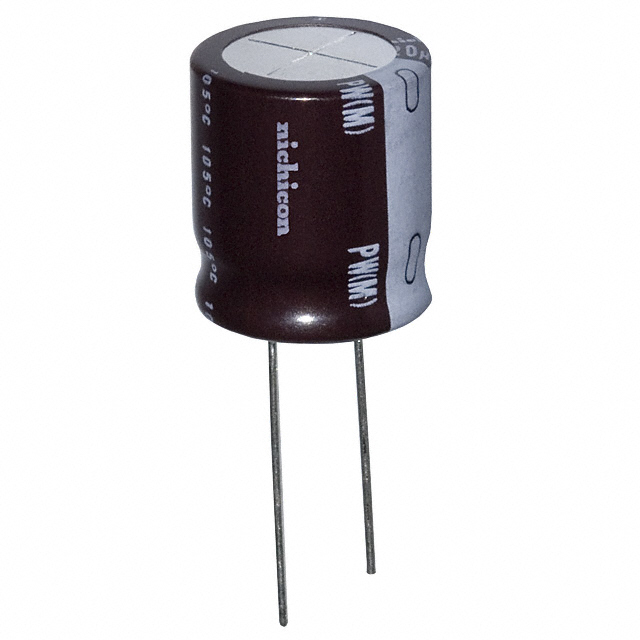

Aluminum Electrolytic Capacitors UPW1J681MHD3 product image

UPW1J681MHD3

$1.35

Description：CAP ALUM 680UF 20% 63V RADIAL TH
Series：UPW
Mfr：Nichicon
Package：Bulk

SKU:5f448973d5c7 Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UPW1J681MHD3 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 680UF 20% 63V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UPW1J681MHD3

Description：CAP ALUM 680UF 20% 63V RADIAL TH
Series：UPW
Mfr：Nichicon
Package：Bulk
Capacitance：680 µF
Tolerance：±20%
Voltage - Rated：63 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：8000 Hrs @ 105°C
Operating Temperature：-55°C ~ 105°C
Polarization：Polar
Ratings：AEC-Q200
Applications：General Purpose
Ripple Current @ Low Frequency：1.718 A @ 120 Hz
Ripple Current @ High Frequency：2.29 A @ 100 kHz
Lead Spacing：0.295" (7.50mm)
Size / Dimension：0.709" Dia (18.00mm)
Height - Seated (Max)：0.787" (20.00mm)
Surface Mount Land Size：-
Mounting Type：Through Hole
Package / Case：Radial, Can
Impedance：55 mOhms
