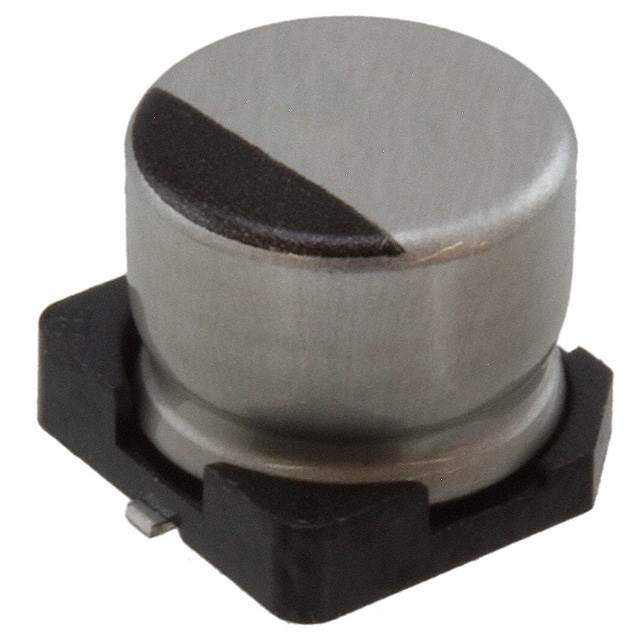

Aluminum Electrolytic Capacitors UWZ1C101MCL1GB product image

UWZ1C101MCL1GB

$0.40

Description：CAP ALUM 100UF 20% 16V SMD
Series：UWZ
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8f23c10d41fb Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UWZ1C101MCL1GB is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 100UF 20% 16V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UWZ1C101MCL1GB

Description：CAP ALUM 100UF 20% 16V SMD
Series：UWZ
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)
Capacitance：100 µF
Tolerance：±20%
Voltage - Rated：16 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：1000 Hrs @ 105°C
Operating Temperature：-55°C ~ 105°C
Polarization：Polar
Ratings：AEC-Q200
Applications：High Temperature Reflow
Ripple Current @ Low Frequency：60 mA @ 120 Hz
Ripple Current @ High Frequency：90 mA @ 10 kHz
Lead Spacing：-
Size / Dimension：0.248" Dia (6.30mm)
Height - Seated (Max)：0.224" (5.70mm)
Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type：Surface Mount
Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for UWZ1C101MCL1GB

UWZ1C101MCL1GB
