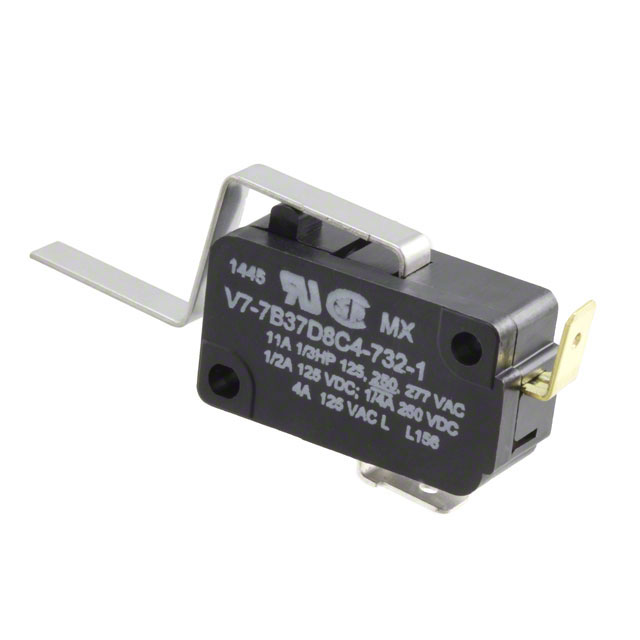

V7-7B37D8C4-732-1

V7-7B37D8C4-732-1 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SWITCH SNAP ACT SPST-NC 11A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for V7-7B37D8C4-732-1

• Description：SWITCH SNAP ACT SPST-NC 11A 125V
• Series：V7
• Mfr：Honeywell Sensing and Productivity Solutions
• Package：Bulk
• Circuit：SPST-NC
• Switch Function：On-Mom
• Current Rating (Amps)：11A (AC), 500mA (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Formed
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：-
• Features：-
• Operating Force：273gf
• Release Force：45gf
• Operating Position：0.602" (15.3mm)
• Pretravel：-
• Differential Travel：0.012" (0.3mm)
• Overtravel：0.032" (0.81mm)
• Operating Temperature：-
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for V7-7B37D8C4-732-1
