VHD36

Overview

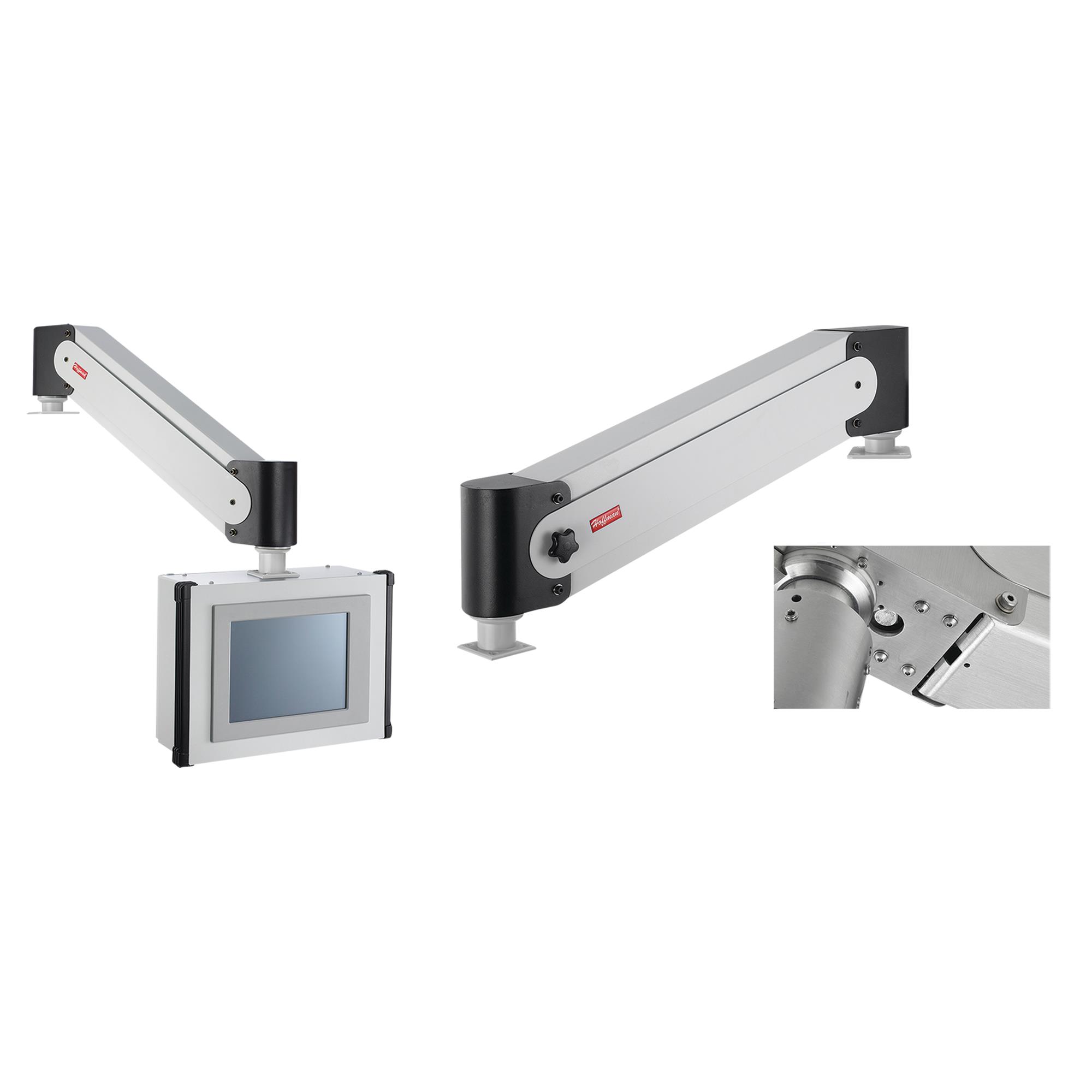

The Hoffman VHD36 is a heavy-duty vertical motion arm designed for NEMA Type 4 and IP66 environments. It features a steel construction with a light gray powder-coated finish. The unit measures 10.18 x 40.65 x 4.86 inches and supports loads between 25 to 75 lbs. It offers 330-degree adjustment and field-adjustable gas spring counterbalance for precise positioning of HMI enclosures.

Feature Summary

• Heavy-duty vertical motion capability for machine top mounting
• Field-adjustable gas spring counterbalance system
• NEMA Type 4 and IP66 rated enclosure protection
• 330-degree rotational adjustment range

Applications

• Mounting HMI enclosures in industrial environments
• Machine tool operator consoles
• Factory automation control panels
• Heavy-duty equipment interfaces requiring frequent repositioning

Procurement Notes

Verify the specific load capacity requirements against the 25 to 75 lb rating before procurement. Confirm that the installation environment meets NEMA Type 4 or IP66 standards. Ensure the mounting surface is compatible with the SYSPEND VM2 series interface. Check for any regional shipping restrictions due to product weight or dimensions.

Selection Notes

Select this model when heavy-duty support for HMIs is required in harsh environments. It is suitable for applications needing significant vertical height adjustment and robust load bearing. Consider the 330-degree rotation if wide viewing angles are necessary. Ensure compatibility with existing SYSPEND HMI enclosure systems.

Part Context

The VHD36 belongs to the SYSPEND 281-MAX series by nVent HOFFMAN. It is designed as a companion accessory for SYSPEND HMI enclosures. The series emphasizes superior load-bearing capacity and functional reliability for industrial machinery tops.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing SYSPEND mounting hardware before considering alternatives.
