VSEB0630H-1R5MC

Fixed Inductors Overview

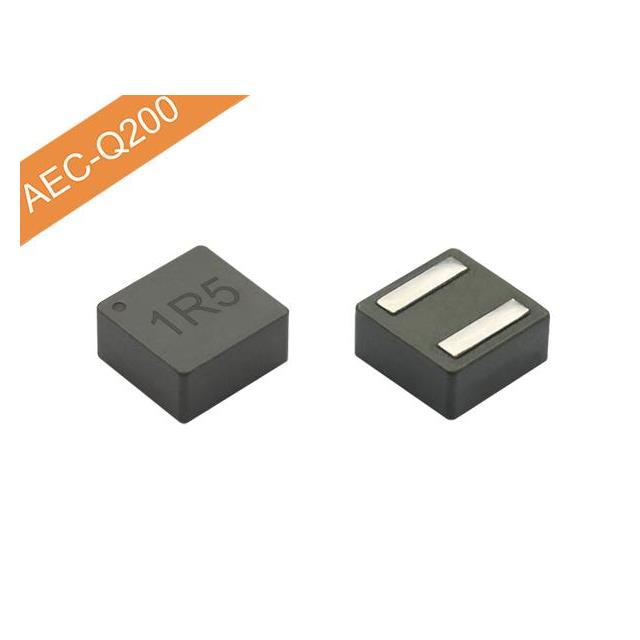

The VSEB0630H-1R5MC is a shielded molded power inductor from the CODACA VSEB0630H series, designed for automotive applications. It features an inductance of 1.5 µH with a tolerance of ±20%. The component supports a rated current of 15.5 A and a saturation current of 18.5 A. Its maximum DC resistance is 7.9 mΩ. The device operates within a temperature range of -40°C to 125°C and complies with AEC-Q200 standards. It utilizes a metal composite core material and is available in a 2-SMD surface-mount package.

Fixed Inductors Feature Summary

• AEC-Q200 compliant automotive grade construction
• Magnetic shielded structure for EMI resistance
• Composite core material for high efficiency

Fixed Inductors Applications

• Automotive electronic systems
• Power supply circuits
• DC-DC converters

Fixed Inductors Procurement Notes

Verify the specific suffix 'MC' against the manufacturer datasheet to confirm exact packaging or tape-and-reel specifications. Ensure the order matches the required AEC-Q200 qualification status for automotive integration. Cross-reference the 7.9 mΩ DCR and 15.5 A rated current parameters with system requirements before finalizing procurement.

Fixed Inductors Selection Notes

Select this component when designing for automotive environments requiring robust magnetic shielding and high current handling capabilities. The 1.5 µH value suits filtering applications in switching power supplies. Consider the 2-SMD footprint and 3.00 mm maximum height for PCB layout constraints. Verify thermal performance within the -40°C to 125°C operating range for the target application.

Fixed Inductors Part Context

This part belongs to the VSEB0630H series of molded power inductors manufactured by CODACA. The series is characterized by its composite core technology and shielded design, targeting high-reliability automotive electronics. Similar parts in the series vary by inductance values and physical dimensions, such as the VSEB0430H variant.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate cross-compatibility based on identical electrical parameters (1.5 µH, 15.5 A, 7.9 mΩ) and mechanical footprint (2-SMD, 0630 size). Verify AEC-Q200 compliance of potential alternatives.
