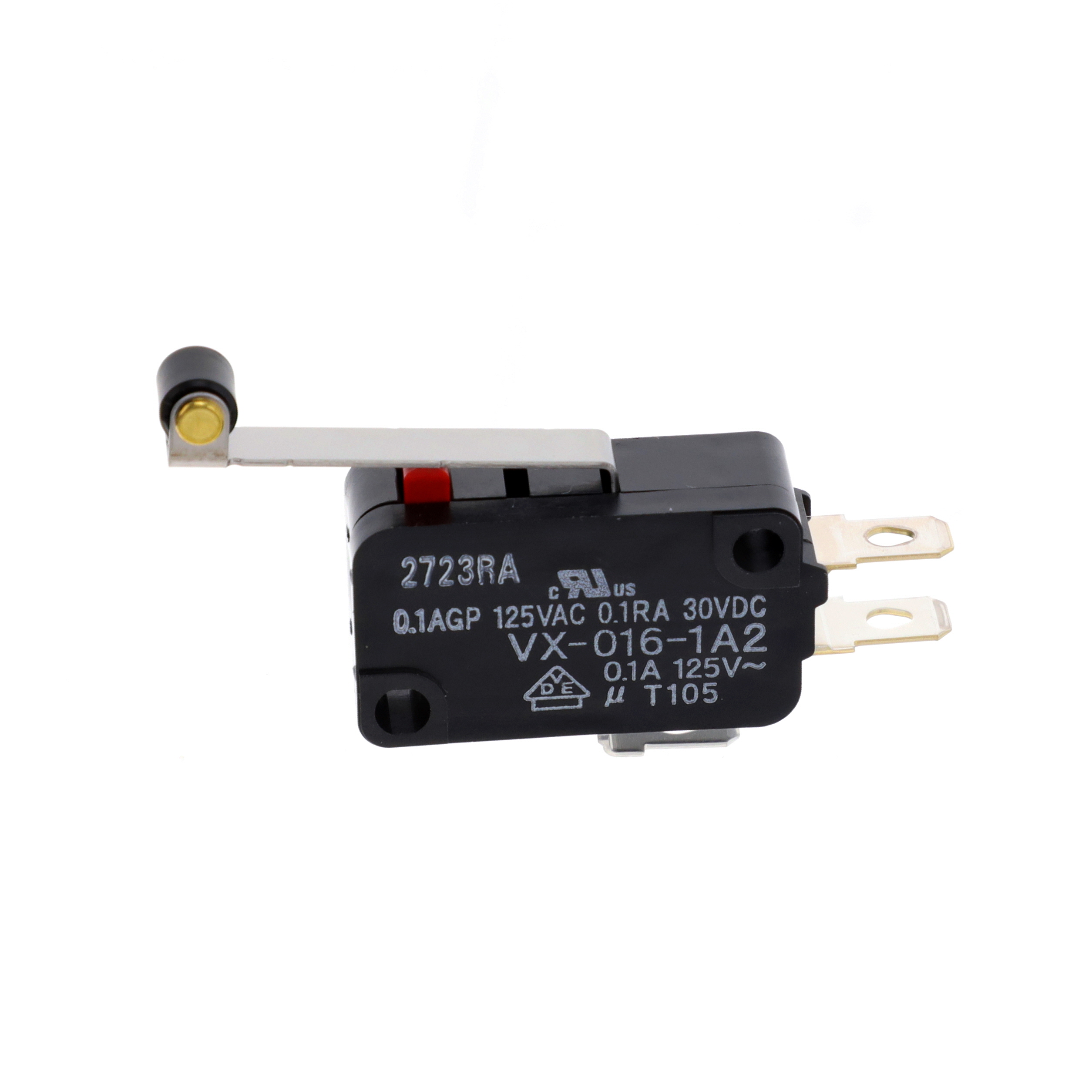

VX-016-1A2

VX-016-1A2 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACT SPDT 0.1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for VX-016-1A2

• Description：SWITCH SNAP ACT SPDT 0.1A 125V
• Series：VX
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (AC/DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：30gf
• Release Force：-
• Operating Position：0.815" (20.7mm)
• Pretravel：0.157" (4.0mm)
• Differential Travel：0.031" (0.8mm)
• Overtravel：0.062" (1.6mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for VX-016-1A2
