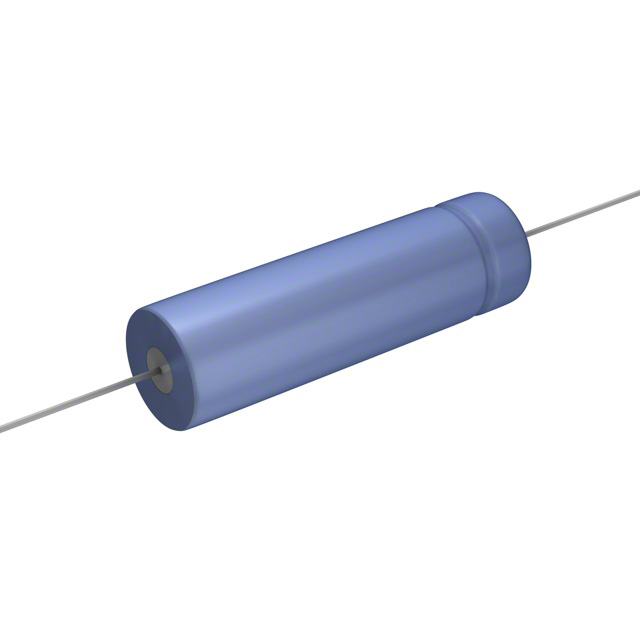

WBR10-450A

WBR10-450A is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Cornell Dubilier Knowles. Its product description is CAP ALUM 10UF 450V AXIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for WBR10-450A

• Description：CAP ALUM 10UF 450V AXIAL TH
• Series：WBR
• Mfr：Cornell Dubilier Knowles
• Package：Bulk,Bulk
• Capacitance：10 µF
• Tolerance：-10%, +50%
• Voltage - Rated：450 V
• ESR (Equivalent Series Resistance)：20Ohm @ 120Hz
• Lifetime @ Temp.：2000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：58 mA @ 120 Hz
• Ripple Current @ High Frequency：75.4 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.520" Dia x 1.570" L (13.21mm x 39.88mm)
• Height - Seated (Max)：-
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Axial, Can

Aluminum Electrolytic Capacitors datasheet and documents for WBR10-450A
