XAL1010-103MED

$6.21

Description：POWER INDUCTOR, SHIELDED, 20% TO
Series：XAL1010
Mfr：Coilcraft
Package：Strip

SKU:f7764f02dae0 Category: Fixed Inductors Brand: Coilcraft

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XAL1010-103MED is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Coilcraft. Its product description is POWER INDUCTOR, SHIELDED, 20% TO. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for XAL1010-103MED

Description：POWER INDUCTOR, SHIELDED, 20% TO
Series：XAL1010
Mfr：Coilcraft
Package：Strip
Type：Molded
Material - Core：Metal Composite
Inductance：10 µH
Tolerance：±20%
Current Rating (Amps)：15.5 A
Current - Saturation (Isat)：17.5A
Shielding：Shielded
DC Resistance (DCR)：14.75mOhm Max
Q @ Freq：-
Frequency - Self Resonant：11MHz
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 165°C
Inductance Frequency - Test：1 MHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.445" L x 0.394" W (11.30mm x 10.00mm)
Height - Seated (Max)：0.394" (10.00mm)
Features：-

Fixed Inductors datasheet and documents for XAL1010-103MED

XAL1010-103MED

Fixed Inductors Overview

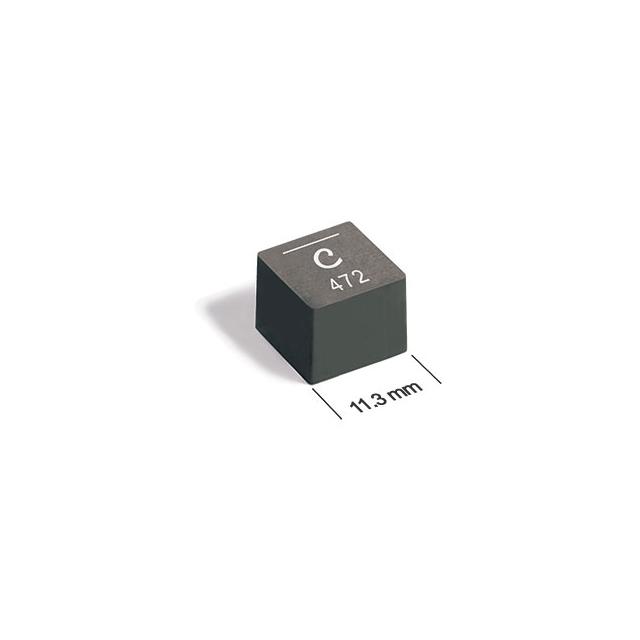

The Coilcraft XAL1010-103MED is a shielded surface-mount power inductor designed for high-current applications. It features a composite core and molded construction within a 10 mm x 10 mm x 11.3 mm package. The component provides an inductance of 10 μH with a tolerance of ±20%. It supports a maximum DC current of 15.5 A and a saturation current of 17.5 A. The maximum DC resistance is 14.75 mΩ, and the self-resonant frequency is 11 MHz. Operating temperatures range from -40°C to +125°C, and it holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

Shielded design minimizes electromagnetic interference
Composite core material ensures stable performance under load
Molded construction enhances mechanical durability
AEC-Q200 qualified for automotive reliability standards

Fixed Inductors Applications

Automotive power distribution networks
High-current synchronous buck converters
Point-of-load regulation modules
DC-DC conversion circuits

Fixed Inductors Procurement Notes

Verify the specific suffix against official documentation, as variations exist between MED and MEB designations. Confirm availability through authorized distributors, noting that supply status may be restricted or limited. Ensure the selected variant matches the required electrical parameters for the target application.

Fixed Inductors Selection Notes

Select this component when space-constrained designs require high current handling in a 10x10 mm footprint. Consider the trade-off between inductance value and saturation current. Verify thermal management requirements based on the specified DCR and operating temperature range.

Fixed Inductors Part Context

This part belongs to the XAL1010 series of high-power shielded inductors. The series utilizes composite cores and molded technology to achieve high efficiency and reliability. It is engineered for demanding environments where size and current capacity are critical constraints.
