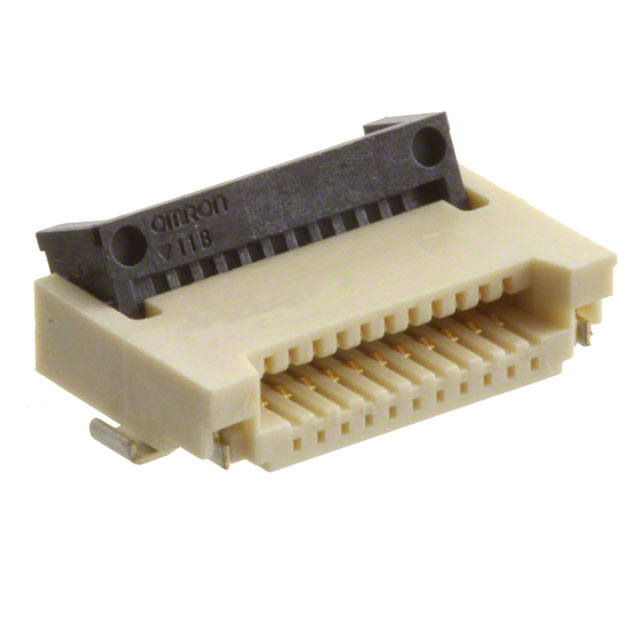

XF3M-1115-1B

XF3M-1115-1B is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is CONN FFC FPC 11POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for XF3M-1115-1B

• Description：CONN FFC FPC 11POS 0.5MM R/A
• Series：XF3M
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：11
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Rotary Lock, Backlock
• Cable End Type：Tapered
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material：Liquid Crystal Polymer (LCP), Halogen Free
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-30°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for XF3M-1115-1B
