XLH335036.864000I

Oscillators Overview

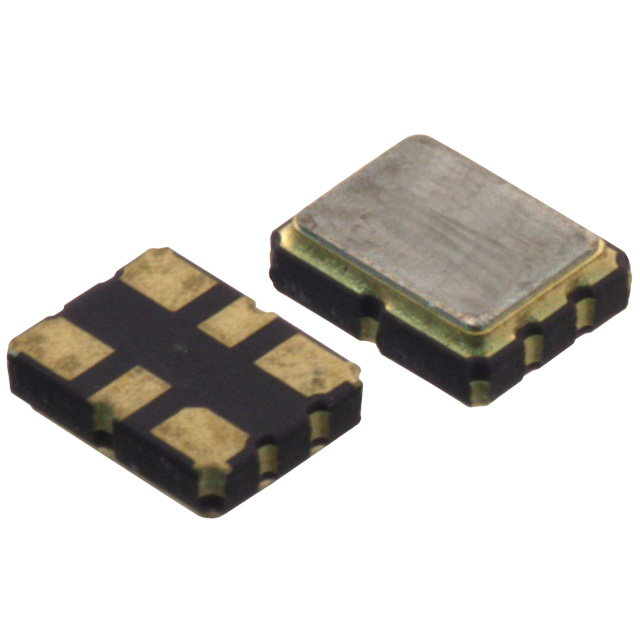

The XLH335036.864000I is a standard clock oscillator manufactured by Renesas Electronics Corporation, operating at a frequency of 36.864 MHz with an HCMOS output format. It functions on a 3.3V supply voltage and features enable/disable control capabilities. The device exhibits a frequency stability of ±50 ppm and operates within a temperature range of -40°C to +85°C. It utilizes a crystal as the basic resonator and is housed in a compact 6-SMD, no-lead package measuring 3.2 mm x 2.5 mm with a maximum height of 0.9 mm.

Oscillators Feature Summary

• Provides stable clock signals via HCMOS output interface
• Supports active enable and disable control functionality
• Designed for surface-mount integration in compact electronic assemblies

Oscillators Applications

• System timing reference for embedded microcontrollers
• Clock source for digital signal processing circuits
• Timing synchronization in communication interfaces

Oscillators Procurement Notes

Verify component authenticity through authorized Renesas distributors or verified supply chain channels. Confirm that the received part matches the exact model number XLH335036.864000I and series FXO-HC33. Ensure compliance with RoHS3 specifications and check for any relevant Product Change Notifications (PCN) regarding label updates or manufacturing sources prior to final procurement acceptance.

Oscillators Selection Notes

Select this oscillator when a precise 36.864 MHz clock signal is required for systems utilizing HCMOS logic levels. Consider the 3.3V operating voltage and the specific 6-SMD package dimensions for PCB layout compatibility. Evaluate the ±50 ppm frequency stability against system timing requirements and ensure the -40°C to +85°C operating range aligns with the intended environmental conditions.

Oscillators Part Context

This component belongs to the Renesas XPRESSO™ FXO-HC33 family of high-performance clock oscillators. The series is characterized by low jitter performance and standardized packaging options suitable for various consumer and industrial electronics applications. The XLH335036.864000I represents a specific frequency variant within this broader product line, sharing common electrical characteristics and form factors with other members.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
