XLUGR59MCA

LED Indication - Discrete Overview

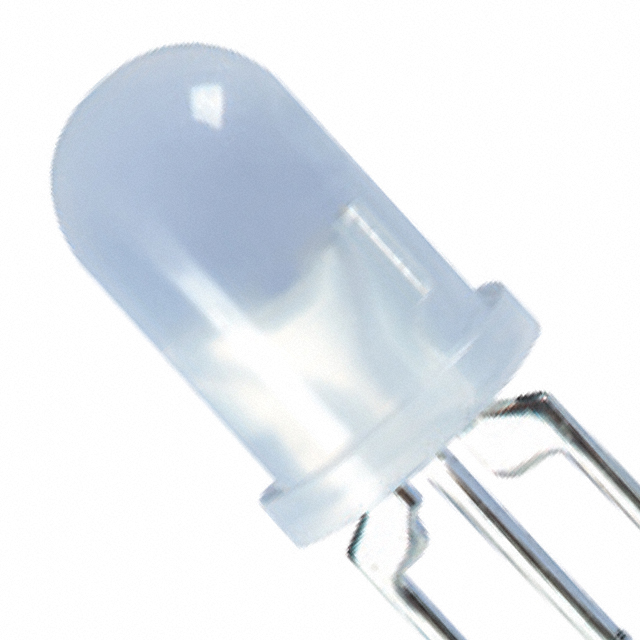

The XLUGR59MCA is a T-1 3/4 (5mm) bi-color indicator lamp manufactured by SunLED. It features a white diffused lens with a common anode configuration and radial three-lead mounting for through-hole applications. The device emits green light at a peak wavelength of 565nm and red light at 627nm. Typical forward voltages are 2.2V for the green segment and 2V for the red segment, tested at 20mA each. The unit provides a luminous intensity of 59mcd for green and 39mcd for red, with a viewing angle of 60 degrees.

LED Indication - Discrete Feature Summary

• Bi-color LED structure combining green and red emission sources within a single package
• White diffused lens design to scatter light evenly across the viewing area
• Common anode electrical configuration simplifying circuit control logic
• Radial lead arrangement compatible with standard through-hole PCB mounting techniques

LED Indication - Discrete Applications

• Power status indication on electronic equipment front panels
• Signal state monitoring in industrial control systems
• Visual feedback components in consumer appliance interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'CA' against manufacturer documentation to confirm the common anode configuration, as variations exist within the series. Ensure the required forward voltage ratings align with the driving circuit capabilities. Confirm that the radial lead spacing matches the target printed circuit board layout dimensions before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a dual-state visual indicator is required within a standard 5mm housing footprint. The common anode topology is suitable for sinking current applications. Consider the 60-degree viewing angle and diffused lens properties for visibility requirements. Validate that the mechanical height constraints of the assembly accommodate the specified maximum dimension.

LED Indication - Discrete Part Context

This part belongs to the XLxx59x series of round bi-color LEDs from SunLED. The series offers various color combinations and lens types in a standardized T-1 3/4 form factor. The XLUGR59MCA specifically denotes the green-red variant with a white diffused lens and common anode connection scheme, distinct from other series members with different electrical or optical characteristics.

LED Indication - Discrete Replacement Considerations

The XLUGR59M is a related model within the same series but may differ in internal configuration or specific electrical parameters. Verify pinout compatibility and forward voltage tolerances before substituting. Cross-reference datasheets to ensure the replacement maintains the required common anode structure and physical mounting dimensions.
