XZCWD45S-9

LED Indication - Discrete Overview

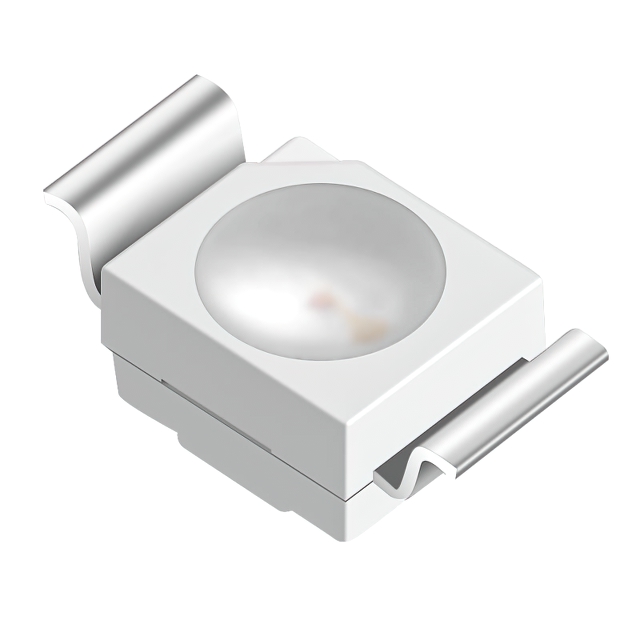

The SunLED XZCWD45S-9 is a white light-emitting diode designed for surface-mount applications. It utilizes InGaN technology to produce white light with a dominant wavelength of 300mcd intensity. The component features a typical forward voltage of 3.3V at a test current of 20mA. It is housed in a 2-SMD, gull-wing package measuring 3.20mm in length and 2.80mm in width, with a maximum height of 1.90mm. The lens is water clear with a flat top design, providing a viewing angle of 120 degrees. This device is RoHS compliant and suitable for indication purposes.

LED Indication - Discrete Feature Summary

• Utilizes InGaN technology for white light emission
• Features a water-clear lens with a flat top design
• Supports reverse mount installation via gull-wing leads

LED Indication - Discrete Applications

• Indicator lights for handheld products
• General electronic status indication
• Surface-mounted circuit board illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix required for tape-and-reel packaging versus cut-tape quantities. Confirm moisture sensitivity level (MSL) handling procedures prior to soldering. Ensure the selected variant matches the required forward voltage characteristics for the target circuit design. Cross-reference the datasheet for absolute maximum ratings to prevent overcurrent damage during operation.

LED Indication - Discrete Selection Notes

Select this component when a low-profile white LED is required for space-constrained designs. The 2-SMD gull-wing package offers reliable surface mounting capabilities. Consider the 120-degree viewing angle for broad visibility requirements. Verify compatibility with standard reflow soldering profiles and ensure the 3.3V forward voltage aligns with the driving circuit's output specifications.

LED Indication - Discrete Part Context

This part belongs to the SunLED SMD LED series, characterized by compact PLCC-style packages. It is distinct from RGB or multi-color variants within the same manufacturer lineup. The XZCWD45S-9 specifically addresses single-color white indication needs. It shares dimensional similarities with other 2-PLCC devices but differs in optical output and internal semiconductor material composition.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other white LEDs in 2-SMD gull-wing packages with similar dimensions. Verify that alternative components match the 3.3V forward voltage and 120-degree viewing angle. Check for equivalent mechanical footprint compatibility to ensure seamless PCB integration without layout modifications.
