XZM2ACY45SB

LED Indication - Discrete Overview

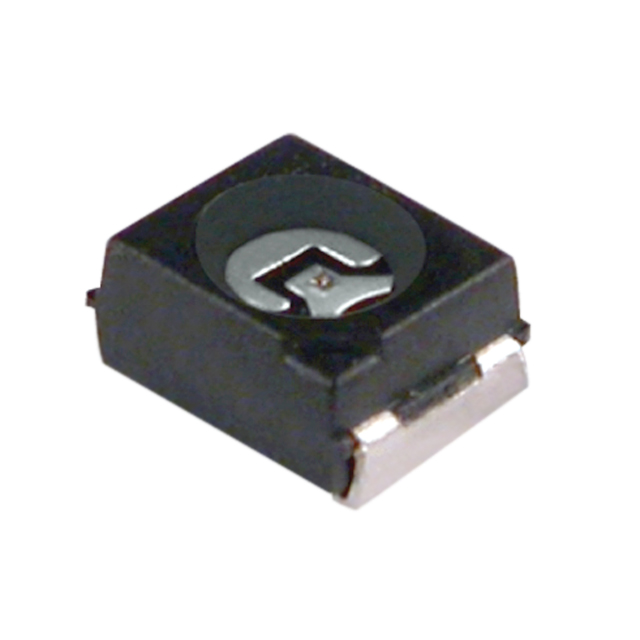

The XZM2ACY45SB is a yellow surface-mount LED from SunLED, part of the NinjaLED series. It features a 2-PLCC package with dimensions of 3.20mm length by 2.80mm width and a maximum height of 2.10mm. The component emits at a peak wavelength of 590nm with a typical forward voltage of 2V at a test current of 20mA. It offers a luminous intensity of 497mcd and a viewing angle of 120 degrees. The lens is clear and domed, designed for standard indicator applications.

LED Indication - Discrete Feature Summary

• Features a clear domed lens for optimized light emission in indicator applications
• Utilizes a compact 2-PLCC surface mount package for automated assembly
• Provides high luminous intensity within a standard yellow spectrum

LED Indication - Discrete Applications

• Panel status indicators
• Power supply signaling
• Electronic device front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'SB' against official SunLED documentation to confirm exact binning or packaging specifications, as distributor listings may primarily reference the base model XZM2ACY45S. Ensure compatibility with RoHS3 standards and MSL level 3 handling requirements during procurement and storage planning.

LED Indication - Discrete Selection Notes

Select this component for designs requiring a low-profile yellow indicator with wide viewing angles. The 2-PLCC form factor suits space-constrained PCB layouts. Consider the 120-degree viewing angle for visibility requirements and verify thermal management needs based on the 2V forward voltage drop at operating currents.

LED Indication - Discrete Part Context

This part belongs to SunLED's NinjaLED series, which focuses on oval lens PLCC2 SMD LEDs. It shares the same footprint and electrical characteristics as other variants in the XZM2ACY45 family, differing primarily in optical intensity bins or specific packaging configurations defined by the manufacturer.

LED Indication - Discrete Replacement Considerations

Direct substitutes include XZM2ACY45S and XZM2CYK45WT from SunLED, provided the specific 'SB' suffix does not denote a unique non-interchangeable specification. Cross-reference with other 2-PLCC yellow LEDs if sourcing constraints exist.
