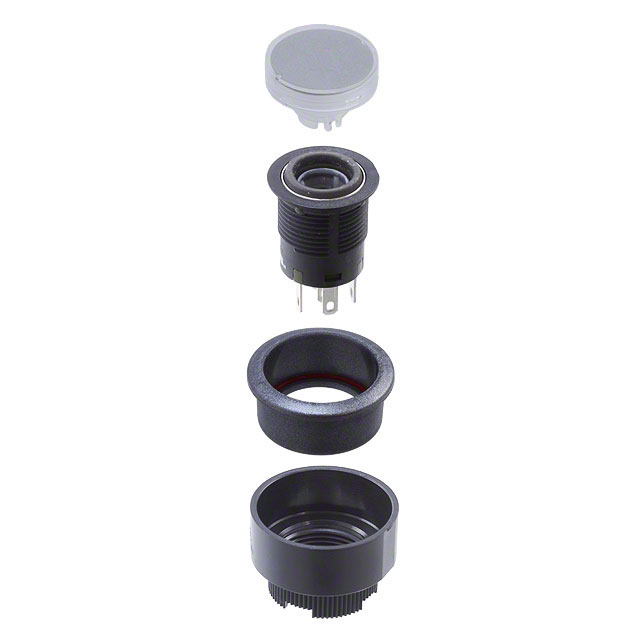

YB215CWCKW01-5C-JS

YB215CWCKW01-5C-JS is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH PUSHBUTTON SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for YB215CWCKW01-5C-JS

• Description：SWITCH PUSHBUTTON SPDT 3A 125V
• Series：YB2
• Mfr：NKK Switches
• Package：Bulk,Box
• Mounting Type：Panel Mount, Front
• Type：Standard, Illuminated
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：3A (AC/DC)
• Actuator Type：Round, Button, Flush
• Actuator Marking：No Marking
• Color - Actuator/Cap：Silver
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：1.9 VDC
• Termination Style：Solder, Quick Connect - 0.110" (2.8mm)
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：Tactile Feedback
• Panel Cutout Dimensions：Circular - 22.00mm Dia
• Operating Temperature：-25°C ~ 50°C
• Voltage Rating - DC：30 V
• Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for YB215CWCKW01-5C-JS
