YFCA002HA

$2.02

Description：EMBEDDED, 700~2690, LTE (4G), FP
Series：-
Mfr：Quectel
Package：Bulk

SKU:082370ebf42f Category: RF Antennas Brand: Quectel

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

YFCA002HA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quectel. Its product description is EMBEDDED, 700~2690, LTE (4G), FP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for YFCA002HA

Description：EMBEDDED, 700~2690, LTE (4G), FP
Series：-
Mfr：Quectel
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：1.69GHz
Frequency Range：700MHz ~ 2.69GHz
Antenna Type：Flat Patch
Number of Bands：1
VSWR：-
Return Loss：-
Gain：-
Features：Cable - 86.5mm
Termination：I-PEX-1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.005" (0.12mm)
Applications：4G, LTE
Power - Max：-

Antennas RF datasheet and documents for YFCA002HA

YFCA002HA

Antennas RF Overview

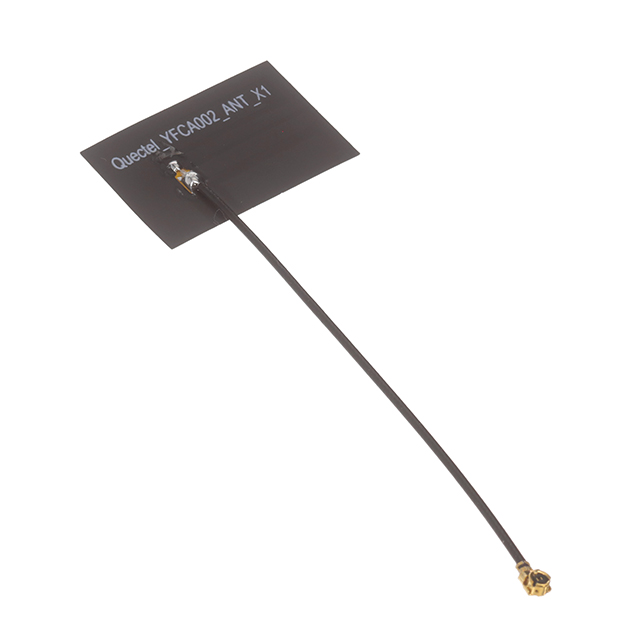

The Quectel YFCA002HA is a passive embedded FPC monopole antenna designed for cellular applications. It operates within a frequency range of 700 MHz to 2.69 GHz, supporting 4G LTE, 3G, and 2G protocols. The component features an adhesive mount style with dimensions of 30 mm in length and 20 mm in width. It includes an 86.5 mm cable terminated with an I-PEX MHF1 connector. The antenna exhibits a gain of 4.47 dBi, an impedance of 50 Ohms, and a VSWR of 4. It functions within a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

Supports wideband operation across 700 MHz to 2.69 GHz for 4G LTE compatibility
Utilizes flexible printed circuit (FPC) construction with integrated cable
Designed for adhesive mounting on device surfaces
Compatible with standard I-PEX MHF1 connectors

Antennas RF Applications

4G LTE wireless communication modules
Cellular radio devices
IoT gateways requiring embedded antennas

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to integration. Confirm that the I-PEX MHF1 connector interface matches the target RF port. Ensure the adhesive mounting method aligns with the mechanical design constraints of the host enclosure. Check for any recent lifecycle updates or obsolescence notices from the manufacturer.

Antennas RF Selection Notes

Select this model when a low-profile embedded solution is required for 4G LTE bands. The FPC form factor allows for flexible placement within compact enclosures. Verify that the operating temperature range meets the environmental requirements of the deployment scenario. Ensure the ground plane independence characteristics suit the device's internal layout.

Antennas RF Part Context

This component belongs to the Quectel embedded antenna family, specifically engineered for mobile and IoT devices. It replaces older discrete antenna solutions by integrating the radiating element and feed line into a single compact unit. The design focuses on minimizing profile while maintaining performance across multiple cellular generations.
