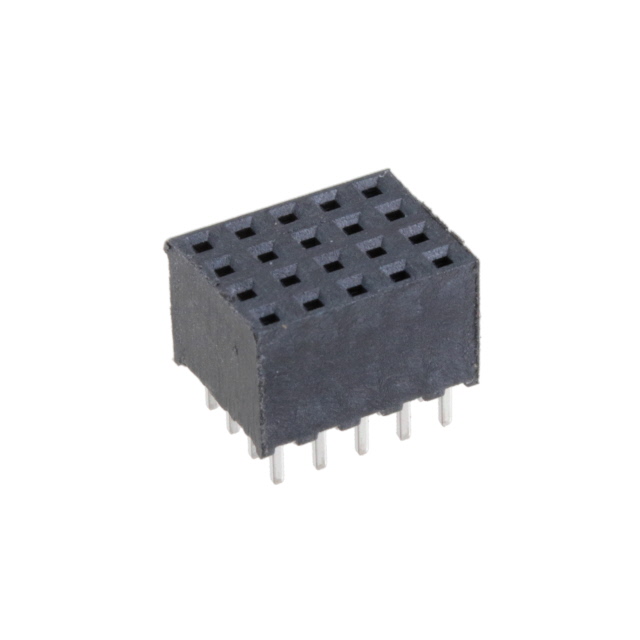

YTS-102-01-F-5

YTS-102-01-F-5 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2.00 MM FLEXYZ HIGH-DENSITY SOCK. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for YTS-102-01-F-5

• Description：2.00 MM FLEXYZ HIGH-DENSITY SOCK
• Series：YTS
• Mfr：Samtec Inc.
• Package：Tube,Tube
• Connector Type：Socket
• Contact Type：Forked
• Style：Board to Board
• Number of Positions：10
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：5
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：3.00µin (0.076µm)
• Insulation Color：Black
• Insulation Height：0.250" (6.35mm)
• Contact Length - Post：0.090" (2.29mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for YTS-102-01-F-5
