ZSS-110-04-T-D-840

Headers, Male Pins Overview

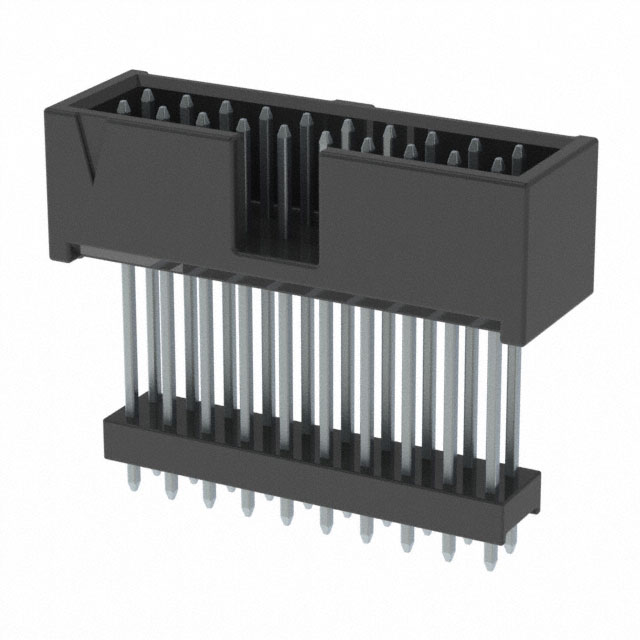

The ZSS-110-04-T-D-840 is a .100" (2.54mm) pitch dual insulator shrouded elevated box header manufactured by Samtec Inc. This component features 20 positions arranged in a 2-row configuration, designed for board-to-board or cable applications. It utilizes a through-hole termination method with square male pins. The connector is rated for 3A current and operates within a temperature range of -55°C to 125°C. The housing is constructed from black polyester reinforced with glass fiber, meeting UL94 V-0 flammability standards. Key dimensions include an insulation height of 0.840 inches and an overall contact length of 0.930 inches.

Headers, Male Pins Feature Summary

• Flexible board stacking design allows for variable pin heights and alignment adjustments
• Shrouded elevated terminal strip provides protection and precise mating alignment
• Dual wipe contact system ensures reliable electrical connection stability

Headers, Male Pins Applications

• Blind mate applications requiring elevated connections
• Embedded communication systems
• Board stacking configurations

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications. Ensure the selected variant matches the required insulation height and pin length for the target assembly. Confirm RoHS compliance status if environmental regulations apply to the final product. Cross-reference the manufacturer part number with distributor catalogs to ensure availability and correct identification before procurement.

Headers, Male Pins Selection Notes

Select this component when flexible board stacking capabilities are required for .100" pitch applications. Consider the shrouded design for improved alignment during blind mating processes. Evaluate the thermal operating range and current rating against system requirements. Ensure the through-hole mounting style aligns with the PCB layout and manufacturing capabilities.

Headers, Male Pins Part Context

This part belongs to the Flex Stack, ZSS series from Samtec Inc., which specializes in flexible board stacking headers. The series is characterized by its ability to accommodate misalignments and provide robust connections in dense electronic assemblies. The ZSS line offers various configurations to suit different height and positioning needs.

Headers, Male Pins Replacement Considerations

Consult official Samtec documentation for verified substitute part numbers. Ensure any replacement maintains the same .100" pitch, 20-position count, and dual row configuration. Verify compatibility with existing mating connectors and PCB footprints before substitution.
