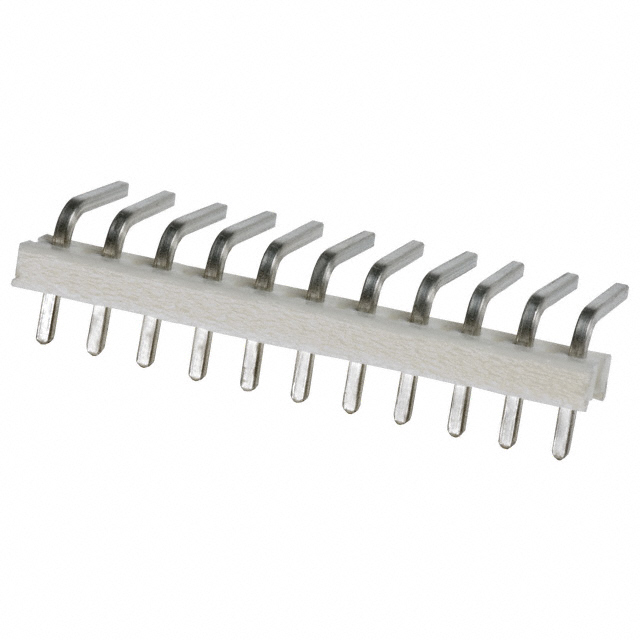

1-640385-1

1-640385-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 11POS 3.96MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-640385-1

• Description：CONN HEADER R/A 11POS 3.96MM
• Series：MTA-156
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.156" (3.96mm)
• Number of Positions：11
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：-
• Contact Length - Mating：0.390" (9.91mm)
• Contact Length - Post：0.125" (3.18mm)
• Overall Contact Length：-
• Insulation Height：0.125" (3.18mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic, Glass Filled
• Features：-
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-640385-1
