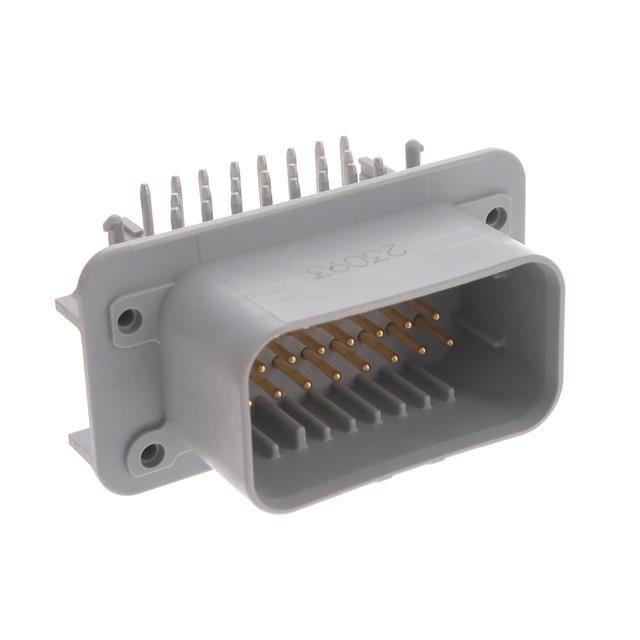

1-770669-4

$11.84

Description：CONN HEADER R/A 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:453542587ad5 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-770669-4 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 23POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-770669-4

Description：CONN HEADER R/A 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：23
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Board Guide, Sealable
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Gray
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-770669-4

1-770669-4

Headers, Male Pins Overview

1-770669-4 is a 23-position automotive connector header from the AMPSEAL series, manufactured by TE Connectivity. It features a 4.00 mm (0.157 inch) pitch and utilizes male pin contacts with gold plating for reliable signal transmission. The housing is designed for panel mount or through-hole installation in a right-angle configuration. Constructed with durable plastic materials, it supports wire-to-board and device connections within an operating temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

AMPSEAL automotive series design ensures robust performance in demanding environments
Gold-plated male pin contacts provide superior corrosion resistance and conductivity
Right-angle mounting facilitates efficient space utilization on printed circuit boards

Headers, Male Pins Applications

Automotive electronic control units
Power distribution systems in vehicles
Signal wiring between devices and boards

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 23-position count and right-angle orientation. Confirm the presence of gold contact plating rather than tin variants. Ensure compatibility with existing AMPSEAL mating housings and terminals. Check for any recent product change notices regarding material updates or manufacturing location shifts before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when high-density automotive interconnects are required. The 4.00 mm pitch accommodates larger conductors compared to standard board headers. Right-angle geometry aids in routing wires away from obstructions. Verify that the IP6K9K rating meets environmental sealing requirements for the intended application zone.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL family, a widely used automotive connector system known for reliability. TE Connectivity developed this line to meet stringent automotive standards. The 1-770669-4 variant specifically addresses needs for multi-pin power and signal integration in compact vehicle architectures.
