1-770872-1

Headers, Male Pins Overview

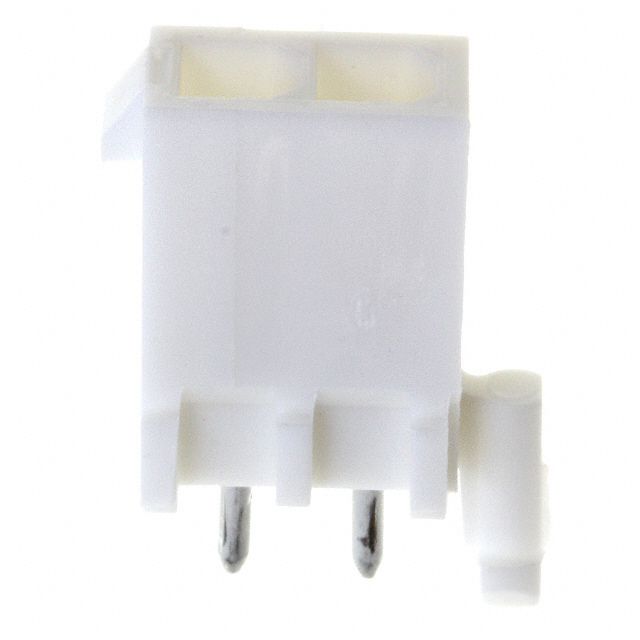

The 1-770872-1 is a rectangular power connector header from the TE Connectivity AMP Connectors line. It features a 2-position configuration with a 4.14mm pitch. Designed for through-hole vertical mounting, it utilizes a solder termination method. The component supports a voltage rating of 600VAC and incorporates a locking ramp mechanism for secure engagement. This single-row connector is intended for wire-to-board applications.

Headers, Male Pins Feature Summary

• Incorporates a locking ramp mechanism to ensure secure mating engagement
• Designed for vertical through-hole installation on printed circuit boards
• Utilizes solder termination for reliable electrical connections

Headers, Male Pins Applications

• Computer systems and peripheral equipment interconnection
• Business machine internal wiring
• Entertainment center component linking
• Appliance control board connections

Headers, Male Pins Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturing updates may occur. Confirm that the required soldering profile matches the component's thermal specifications. Ensure compatibility with the mating receptacle regarding the locking ramp interface. Check for any recent product change notices affecting material composition or dimensional tolerances before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile, two-position header is required for high-voltage applications up to 600VAC. The 4.14mm pitch provides adequate spacing for safety clearance. Consider the vertical orientation for space-constrained PCB layouts. The locking ramp feature is essential where vibration resistance during operation is a priority. Verify pin count requirements to ensure no unused positions remain in the design.

Headers, Male Pins Part Context

This part belongs to the AMP brand portfolio under TE Connectivity, a leader in electronic connectors. The AMP series historically focuses on robust industrial and commercial interconnect solutions. The 1-770872-1 represents a standard power connector solution within their rectangular housing lineup, emphasizing reliability in consumer and business electronics sectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires verifying mechanical fit, electrical ratings, and locking mechanism compatibility with existing designs.
