1-770875-0

$2.30

Description：CONN HEADER VERT 6POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:e5df0091801f Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-770875-0 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 6POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-770875-0

Description：CONN HEADER VERT 6POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.163" (4.14mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.163" (4.14mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.175" (4.45mm)
Overall Contact Length：-
Insulation Height：0.531" (13.50mm)
Contact Shape：Circular
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：150.0µin (3.81µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-20°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-770875-0

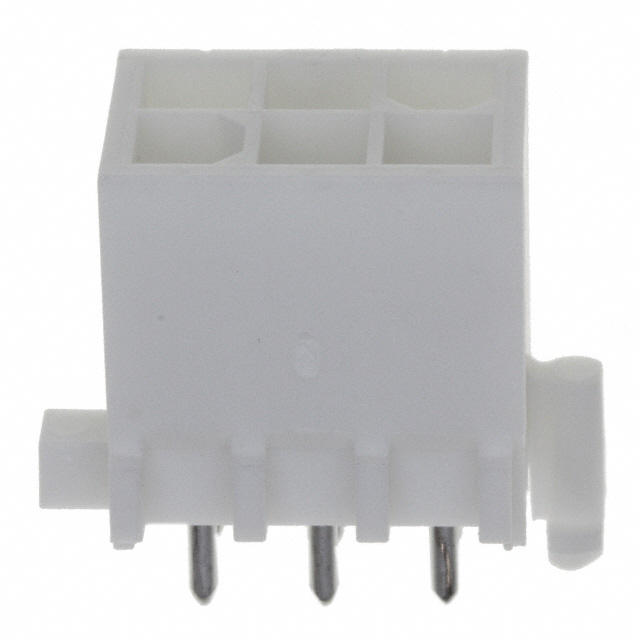

1-770875-0

Headers, Male Pins Overview

The 1-770875-0 is a vertical pin header from the Mini-Universal MATE-N-LOK series by TE Connectivity. It features a 6-position, 2-row configuration with a 4.14 mm pitch. Designed for through-hole PCB mounting, it utilizes brass contacts with matte tin plating and a white nylon housing rated UL 94 V-0. The connector supports a voltage rating of 600 V and a current rating of 9.5 A.

Headers, Male Pins Feature Summary

Vertical pin header design for direct PCB integration
High voltage insulation with UL 94 V-0 flammability rating
Robust brass contacts with matte tin surface treatment

Headers, Male Pins Applications

Industrial control systems
Power distribution units
General purpose electronic equipment

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm RoHS compliance status and specific manufacturing lot details against official datasheets prior to procurement. Ensure storage conditions maintain housing integrity.

Headers, Male Pins Selection Notes

Select this component for applications requiring high voltage isolation in compact vertical layouts. The 4.14 mm pitch accommodates substantial current loads while maintaining structural stability. Verify mating socket compatibility within the MATE-N-LOK ecosystem for reliable interconnection.

Headers, Male Pins Part Context

Part of the established Mini-Universal MATE-N-LOK family, known for reliability in demanding environments. This specific header variant provides a secure vertical interface solution, complementing the broader range of compatible housings and contact sets offered by TE Connectivity for system integration.
