1-770968-0

Headers, Male Pins Overview

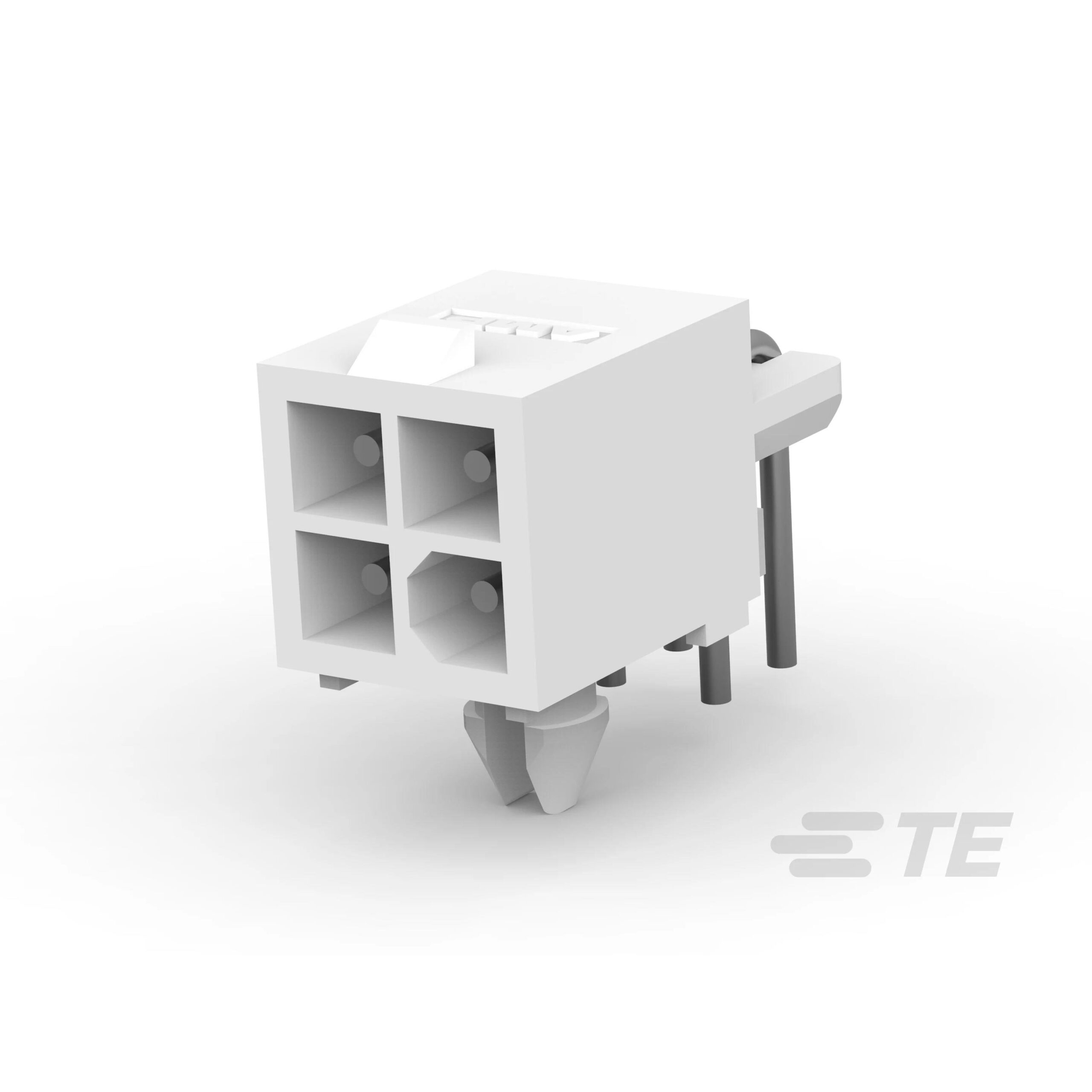

The TE Connectivity 1-770968-0 is a right-angle PCB header from the Mini-Universal MATE-N-LOK series. It features a 4-position, dual-row configuration with a 4.14mm pitch. Designed for wire-to-board connections, it utilizes through-hole termination and tin-plated brass contacts. The housing is constructed from white nylon rated UL94 V-0. Electrical ratings include 600VAC voltage and up to 9.5A current capacity. Operating temperatures range from -55°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layout integration
• Dual-row structure provides efficient space utilization
• Tin-plated brass contacts ensure reliable conductivity
• Nylon housing offers thermal stability and flame resistance

Headers, Male Pins Applications

• Industrial control systems
• Power supply units
• General-purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the complete part number including any ordering suffixes against official TE Connectivity documentation to ensure correct housing color, contact plating, and mounting style specifications. Confirm that the intended application environment aligns with the specified temperature and voltage ratings before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header is required for high-voltage applications within the Mini-Universal MATE-N-LOK ecosystem. Ensure compatibility with corresponding receptacle connectors and verify that the PCB footprint matches the 4.14mm pitch and pin configuration requirements of the design.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK family, known for robust wire-to-board interconnect solutions. The series supports various positions and configurations, offering flexibility for diverse industrial and commercial applications requiring reliable electrical connections under demanding conditions.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pitch, row count, and voltage ratings to preserve system integrity and mechanical fit.
