1-770968-1

$4.20

Description：CONN HEADER R/A 4POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:bc52ed64275e Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-770968-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 4POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-770968-1

Description：CONN HEADER R/A 4POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.163" (4.14mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.163" (4.14mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.145" (3.68mm)
Overall Contact Length：-
Insulation Height：0.386" (9.80mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-20°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-770968-1

1-770968-1

Headers, Male Pins Overview

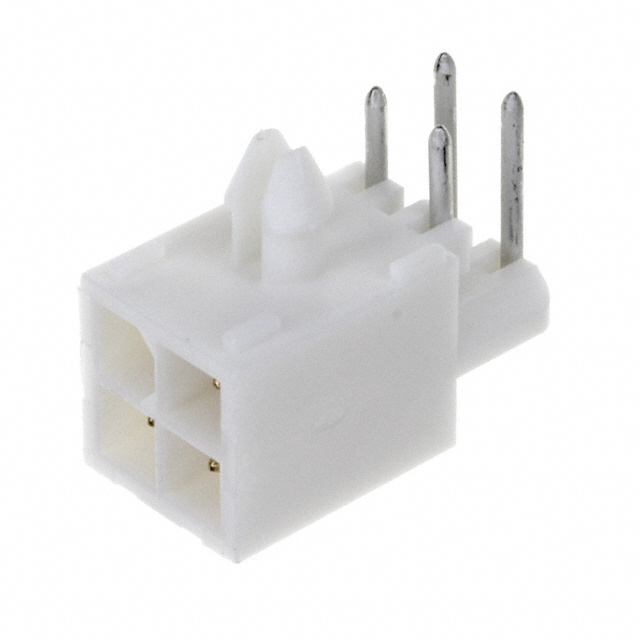

The TE Connectivity AMP Connectors part number 1-770968-1 is a PCB header from the Mini-Universal MATE-N-LOK series. It features a 4-position, double-row configuration with a 4.14mm pitch. The connector utilizes male pins with gold plating and is designed for right-angle through-hole installation. Rated at 600VAC and 9.5A, it employs nylon insulation and supports wire-to-board connections.

Headers, Male Pins Feature Summary

Right-angle through-hole mounting for PCB integration
Gold-plated contacts for reliable signal transmission
Double-row layout within a compact footprint

Headers, Male Pins Applications

General electronic equipment interconnects
Industrial control system wiring
Consumer electronics circuit boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material specifications. Ensure compatibility with mating socket connectors in the same MATE-N-LOK family. Confirm that the right-angle orientation meets the mechanical constraints of the target assembly design.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for high-current applications up to 9.5A. The 4.14mm pitch allows for adequate spacing on standard PCB layouts. Gold plating ensures durability against corrosion in demanding environments compared to tin alternatives.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK series, known for robust performance in general-purpose applications. It complements other headers and sockets within the same pitch and housing style family, allowing for mixed position counts while maintaining consistent mechanical interfaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 4-position, double-row, right-angle headers with 4.14mm pitch from the same manufacturer. Verify that alternative parts maintain the 600VAC rating and 9.5A current capacity to ensure electrical equivalence.
