1-770969-0

Headers, Male Pins Overview

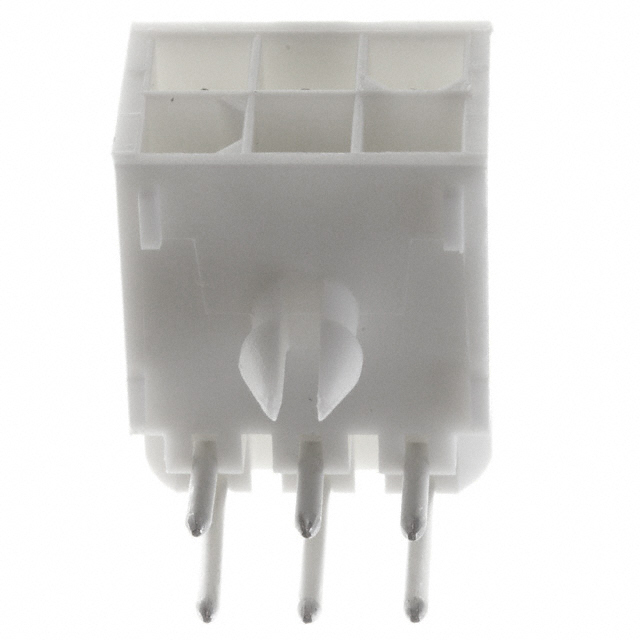

The TE Connectivity AMP Connectors part number 1-770969-0 is a wire-to-board connector belonging to the Mini Universal MATE-N-LOK series. It features a dual-row plug housing with six contacts and a 4.14 mm (0.163 inch) pitch. The connector utilizes a right-angle through-hole solder termination style for secure PCB mounting. Designed for general-purpose applications, it offers reliable electrical interconnection in compact form factors suitable for various electronic assemblies.

Headers, Male Pins Feature Summary

• Mini Universal MATE-N-LOK series design for compact interconnect solutions
• Right-angle through-hole solder termination for stable board mounting
• Dual-row configuration providing efficient contact density
• Plug housing style compatible with corresponding socket headers

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable signal or power routing
• Industrial control systems utilizing standard pin-and-socket interfaces
• Consumer electronics manufacturing involving wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific datasheet version before procurement, as TE Connectivity may update documentation without altering the base part number. Confirm that the right-angle orientation and dual-row layout match the intended PCB footprint requirements. Ensure compatibility with mating socket components within the same MATE-N-LOK family to guarantee proper mechanical engagement and electrical performance.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row wire-to-board connection is required within the Mini Universal MATE-N-LOK ecosystem. The 4.14 mm pitch dictates the available trace spacing on the printed circuit board. Consider the through-hole soldering process implications for assembly workflows and thermal management during reflow or wave soldering operations.

Headers, Male Pins Part Context

This connector is part of the extensive Mini Universal MATE-N-LOK product line, known for its versatility in mixed-signal applications. The series provides a standardized interface for various industrial and commercial sectors. As a plug header, it serves as the male counterpart to female socket receptacles, forming complete interconnect systems for diverse electronic hardware designs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other TE Connectivity MATE-N-LOK headers with matching 4.14 mm pitch and dual-row configurations. Verify that alternative parts maintain the same right-angle orientation and through-hole termination method to ensure mechanical fit.
