1-770973-1

Headers, Male Pins Overview

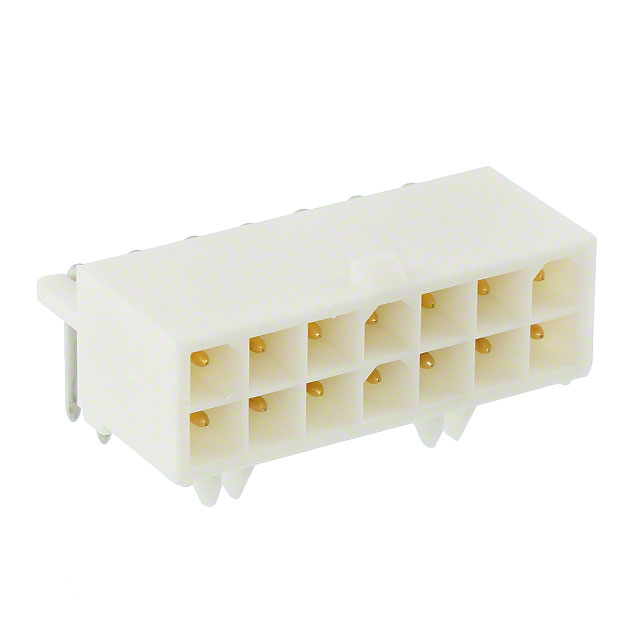

The 1-770973-1 is a dual-row right-angle header connector from the MATE-N-LOK series by TE Connectivity AMP Connectors. It features 14 positions with male pin contacts and a 4.14 mm pitch. Designed for through-hole PCB mounting, it utilizes brass contacts with gold plating and a nylon housing rated UL 94 V-0. The component supports a voltage rating of 600 V and current ratings varying by wire gauge.

Headers, Male Pins Feature Summary

• Dual-row configuration with right-angle orientation for space-efficient PCB layout
• Gold-plated brass contacts ensure reliable electrical performance
• Nylon housing provides UL 94 V-0 flame resistance

Headers, Male Pins Applications

• Industrial control systems
• Power distribution units
• General electronic equipment interconnections

Headers, Male Pins Procurement Notes

Verify RoHS compliance status and confirm end-of-life or obsolescence notices before procurement. Check distributor availability as supply may be limited. Ensure mating socket connectors match the 4.14 mm pitch and dual-row format to guarantee mechanical compatibility.

Headers, Male Pins Selection Notes

Select this part for applications requiring robust power connections in compact spaces. The right-angle design facilitates board stacking or edge mounting. Verify that the operating temperature range and current derating curves align with system requirements. Confirm housing color and locking mechanism needs against mating components.

Headers, Male Pins Part Context

This component belongs to the MATE-N-LOK family, known for high-current capabilities and secure locking mechanisms. It serves as a standard interconnect solution within TE Connectivity's broad portfolio of rectangular connectors, widely used in automotive and industrial sectors for reliable signal and power transmission.

Headers, Male Pins Replacement Considerations

The 770973-1 is a documented substitute variant featuring matte tin contacts instead of gold. Verify contact material differences impact application requirements. Other MATE-N-LOK headers with identical 14-position dual-row specifications may serve as alternatives if contact plating differs.
