1-776087-1

Headers, Male Pins Overview

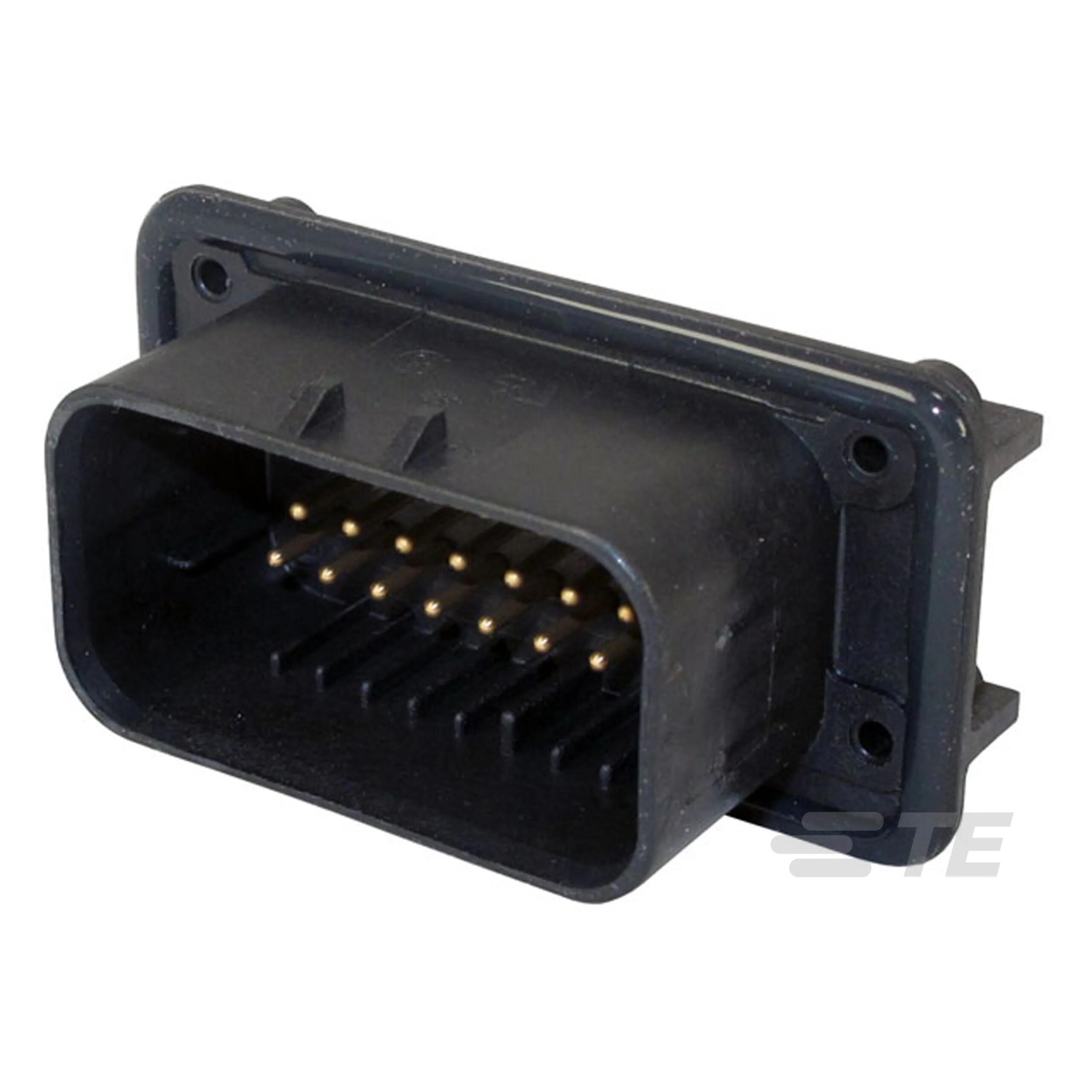

The 1-776087-1 is a 23-position rectangular power connector header from the AMPSEAL series by TE Connectivity Deutsch Connectors. It features a 4.00 mm (0.157 in) pitch and utilizes a three-row pin configuration for male contact interfaces. Designed for through-hole panel mount installation, this right-angle component employs solder termination with tin-plated brass contacts. The housing is constructed from black glass-filled PBT plastic, achieving UL 94 V-0 flammability ratings. It supports wire gauges ranging from 16 AWG to 20 AWG and operates within a temperature range of -40°C to +125°C.

Headers, Male Pins Feature Summary

• Sealed design with board guide rails for reliable environmental protection
• Right-angle orientation facilitates compact panel mounting configurations
• Locking pin slide mechanism ensures secure mating retention

Headers, Male Pins Applications

• Automotive electrical systems
• Industrial control equipment
• Wire-to-board signal transmission

Headers, Male Pins Procurement Notes

Verify that the specific order matches the right-angle through-hole variant rather than the standard straight header. Confirm the gold-pallium contact plating specification against project requirements, as it differs from standard tin-only versions. Ensure compatibility with the corresponding AMPSEAL mating housing and verify that the PCB footprint aligns with the 4.00 mm pitch dimensions.

Headers, Male Pins Selection Notes

Select this model when a sealed, right-angle header is required for high-reliability automotive or industrial environments. The gold-pallium plating offers superior corrosion resistance compared to standard tin finishes. Consider the 23-position capacity and three-row layout for dense wiring applications where space efficiency and robust mechanical locking are critical design factors.

Headers, Male Pins Part Context

This component belongs to the AMPSEAL family of automotive connectors, known for their durability in harsh conditions. The base product number 776087 represents the core series, while the prefix '1-' denotes the specific right-angle, through-hole header configuration. It complements various mating housings and terminal sets within the same ecosystem.

Headers, Male Pins Replacement Considerations

The 776087-1 serves as a direct substitute for users requiring a straight-through configuration instead of the right-angle design. Both share identical positioning, pitch, and series characteristics, differing only in physical orientation and mounting style.
