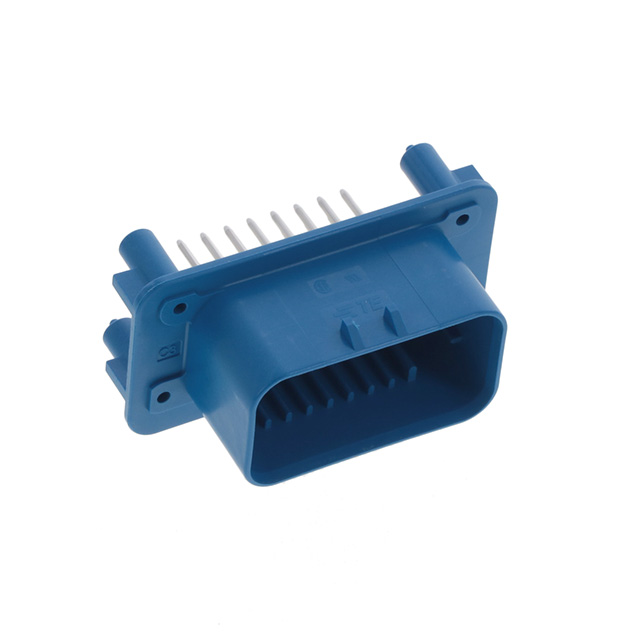

1-776200-5

$13.10

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:7a5480ae59ca Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776200-5 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 23POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776200-5

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：23
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealable
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Blue
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776200-5

1-776200-5

Headers, Male Pins Overview

The 1-776200-5 is a vertical header connector from the AMPSEAL series by TE Connectivity AMP Connectors. It features a 23-position configuration with a 4.00mm (0.157 inch) mating pitch. Designed for through-hole and panel mounting, it utilizes gold-pallium terminated brass contacts within a blue PBT insulator. The component supports a rated voltage of 250VAC and operates within a temperature range of -40°C to 125°C.

Headers, Male Pins Feature Summary

Features a four-wall shielded housing design for enhanced signal integrity and environmental protection.
Incorporates a locking pin slide mechanism to ensure secure mating and retention.
Constructed with flame-retardant glass-filled PBT insulation for thermal stability.

Headers, Male Pins Applications

Automotive electronic control units
Industrial machinery interfaces
General-purpose power distribution systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm plating thickness and material variations. Ensure compatibility with mating plugs regarding contact length and locking mechanisms before integration into final assemblies.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust panel-mount headers with high current capacity. Confirm that the 4.00mm pitch aligns with PCB layout constraints and that the operating temperature range meets system requirements.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL family, widely recognized for automotive and industrial reliability. It provides a sealed connection solution suitable for harsh environments, distinguishing it from standard unsealed rectangular connectors.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are documented for this specific configuration. Evaluate cross-referencing with other AMPSEAL variants or consult manufacturer engineering support for equivalent specifications.
