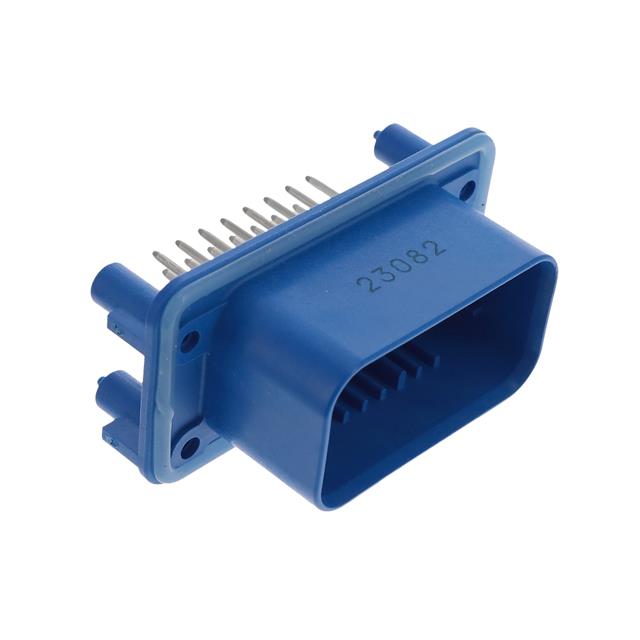

1-776228-5

$14.21

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:019e1d50a71a Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776228-5 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 23POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776228-5

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：23
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealed
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Blue
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776228-5

1-776228-5

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-776228-5 is a vertical header connector belonging to the AMPSEAL series. It features 23 positions with a 0.157-inch (4.00mm) pitch and utilizes three rows of contacts. Designed for panel and through-hole mounting, it employs solder termination and includes an integrated shield with four walls. The housing is blue PBT reinforced with glass fiber, while contacts are brass with gold-palladium plating. Rated for 250VAC and operating between -40°C and 125°C.

Headers, Male Pins Feature Summary

Features a robust metal shield structure with four walls to provide electromagnetic interference protection.
Utilizes a slide-lock pin fastening mechanism to ensure secure mating engagement.
Constructed with glass-reinforced PBT insulation for high thermal stability and durability.
Incorporates gold-palladium contact plating to maintain reliable signal transmission.

Headers, Male Pins Applications

Automotive electronic control units
Industrial machinery interfaces
High-voltage power distribution systems

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 1-776228-5 designation to ensure correct row count and shielding configuration. Confirm compatibility with mating receptacles from the same AMPSEAL family. Check for updated compliance documentation regarding RoHS3 and REACH status before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a sealed, vertically oriented header with substantial EMI shielding is required. Ensure the application environment supports the specified temperature range and voltage rating. Verify that the PCB layout accommodates the through-hole soldering profile and panel mounting flange dimensions.

Headers, Male Pins Part Context

This connector belongs to the AMPSEAL product line, which is engineered for demanding automotive and industrial environments. The series emphasizes reliability under vibration and exposure to harsh conditions. The 1-776228-5 variant specifically addresses applications requiring robust signal integrity and physical protection for critical circuit connections.
