1-776230-1

Headers, Male Pins Overview

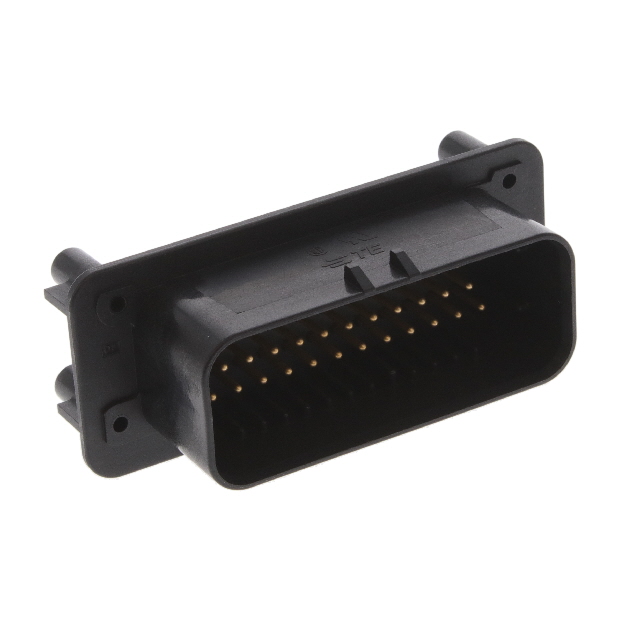

The 1-776230-1 is a rectangular connector housing manufactured by TE Connectivity AMP Connectors. It features a 35-position configuration with a 4.00mm pitch arranged in three rows. Designed as a plug housing, it utilizes PBT insulation and incorporates a pin lock fastening mechanism for secure mating. The component is intended for crimp termination applications and is supplied in bulk packaging.

Headers, Male Pins Feature Summary

• Three-row plug housing design accommodating 35 positions
• Pin lock fastening system ensures secure connection integrity
• Constructed from black PBT insulation material
• Engineered for crimp termination contact interfaces

Headers, Male Pins Applications

• Industrial control panel interconnections
• Automotive wiring harness assemblies
• General equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current manufacturing status and availability. Ensure that compatible contacts are sourced separately as they are not included with the housing. Cross-reference technical drawings for precise dimensional requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this housing when a robust, multi-row solution is required for crimped connections. Verify that the application environment is compatible with PBT material properties. Confirm that the mating interface supports the specified pin locking mechanism to maintain reliable electrical continuity during operation.

Headers, Male Pins Part Context

This component belongs to the AMPSEAL series of rectangular connectors produced by TE Connectivity. The series is widely recognized for providing durable interconnection solutions suitable for demanding environments. The product line emphasizes reliability through standardized designs and rigorous testing protocols established by the manufacturer.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity resources for confirmed substitute part numbers. Do not assume compatibility with other manufacturers' housings without verifying dimensional and mechanical specifications.
