1-776231-2

$19.07

Description：CONN HEADER VERT 35POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:bae71a958980 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776231-2 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 35POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776231-2

Description：CONN HEADER VERT 35POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：35
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealed
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776231-2

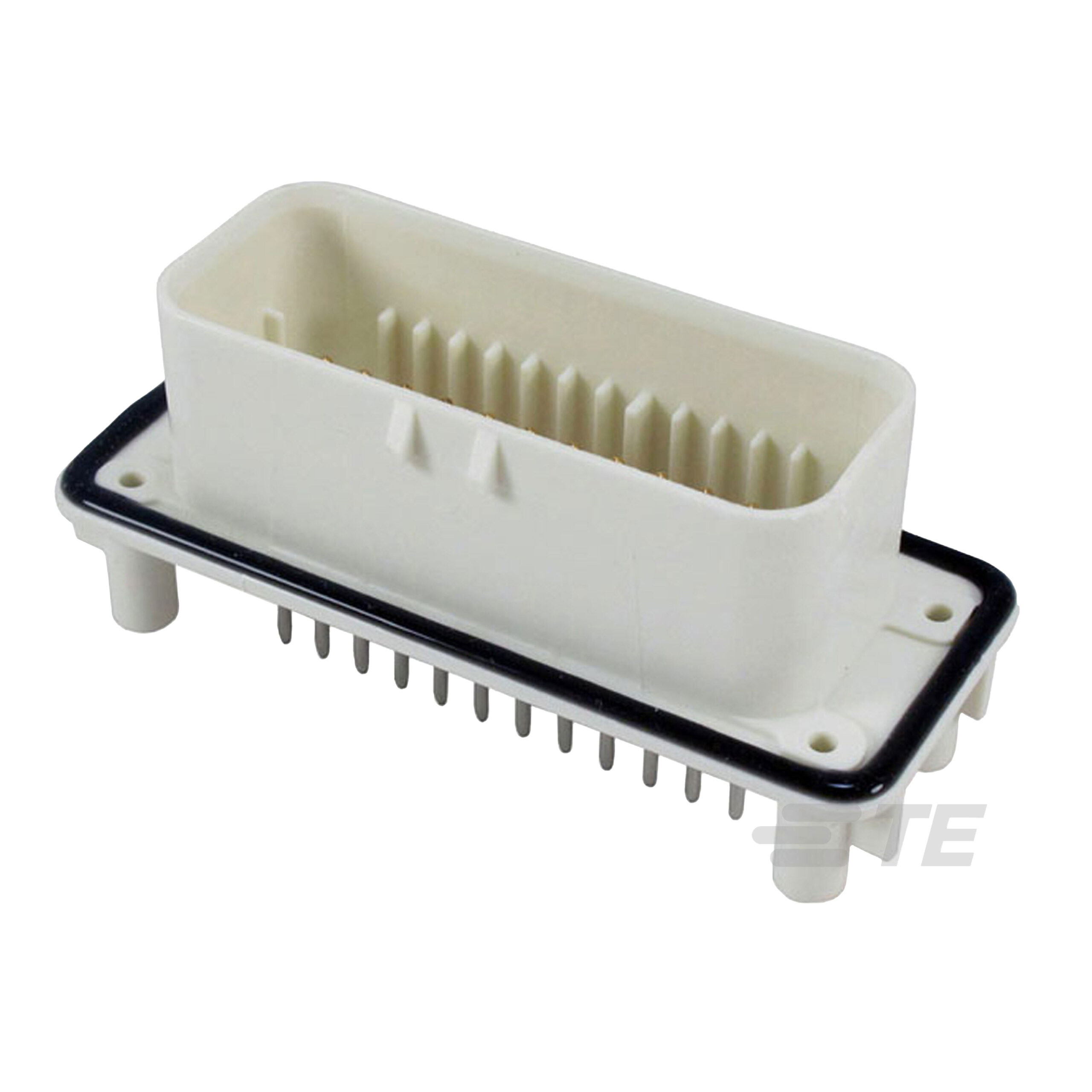

1-776231-2

Headers, Male Pins Overview

The 1-776231-2 is a header connector from the AMPSEAL series, manufactured by TE Connectivity. It features a vertical panel mount and through-hole termination style with 35 positions arranged in three rows. The mating pitch is 0.157 inches (4.00mm). The contacts are gold-palladium plated brass pins housed in orange PBT insulation reinforced with glass fiber. Rated for 250VAC and operating between -40°C and 125°C, it includes an installation flange and sealing capabilities.

Headers, Male Pins Feature Summary

Features a locking pin rail mechanism for secure connection retention
Constructed with gold-palladium plated brass contacts for reliable conductivity
Housed in orange glass-fiber reinforced PBT insulation material
Designed with an integrated mounting flange and sealing properties

Headers, Male Pins Applications

Automotive electrical systems
Industrial control equipment
Board-to-cable or wire connections

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required header configuration rather than the housing variant. Confirm the contact plating specification aligns with environmental requirements. Ensure the panel mount dimensions accommodate the integrated flange design. Check for any recent product change notices affecting material composition or manufacturing location.

Headers, Male Pins Selection Notes

Select this component when a sealed, high-density header is required for automotive or industrial environments. Compare against the 776164-2 housing to ensure proper mating compatibility. Verify that the 4.00mm pitch fits the board layout constraints. Consider the temperature rating range for thermal management needs.

Headers, Male Pins Part Context

This connector belongs to the AMPSEAL family of rectangular connectors designed for robust performance. The series is widely utilized in demanding sectors such as automotive and heavy industry. It represents a standard solution for secure, sealed interconnects requiring high durability and consistent electrical performance over time.
