1-794066-0

Headers, Male Pins Overview

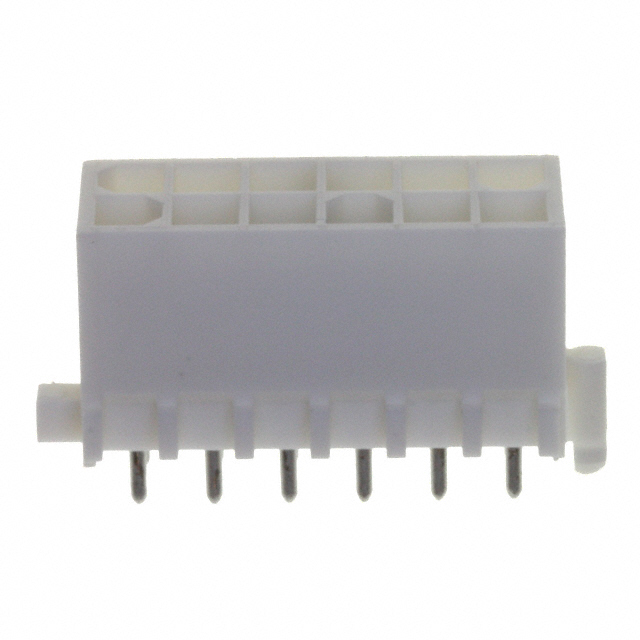

The 1-794066-0 is a vertical PCB pin header from the MATE-N-LOK series by TE Connectivity / AMP. It features a dual-row configuration with 12 positions and a 4.14 mm pitch. The connector utilizes brass contacts with matte tin plating and a nylon housing rated UL 94 V-0. Electrical ratings include 600 V voltage and 9.5 A current. It employs through-hole termination for secure PCB mounting.

Headers, Male Pins Feature Summary

• Dual-row pin header design for high-density connections
• Robust mechanical locking via MATE-N-LOK system
• High voltage and current capacity for industrial applications

Headers, Male Pins Applications

• Industrial control systems
• Power distribution units
• Heavy-duty equipment interconnects

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm RoHS compliance status and specific lot traceability requirements against project specifications. Ensure storage conditions maintain contact integrity prior to assembly.

Headers, Male Pins Selection Notes

Select this part for applications requiring high current handling in compact spaces. The 4.14 mm pitch accommodates larger wire gauges compared to standard headers. Verify mating socket compatibility within the MATE-N-LOK ecosystem before integration.

Headers, Male Pins Part Context

Part of the established MATE-N-LOK family, known for reliable power and signal transmission. Designed for demanding environments where vibration resistance and electrical stability are critical. Represents a legacy solution for high-amperage board-to-board or wire-to-board connections.

Headers, Male Pins Replacement Considerations

Check for direct cross-reference equivalents within the same MATE-N-LOK series. Verify pin count, pitch, and row alignment match exactly. Consider updated variants if available, ensuring identical mechanical footprint and electrical ratings.
