1-794068-0

Headers, Male Pins Overview

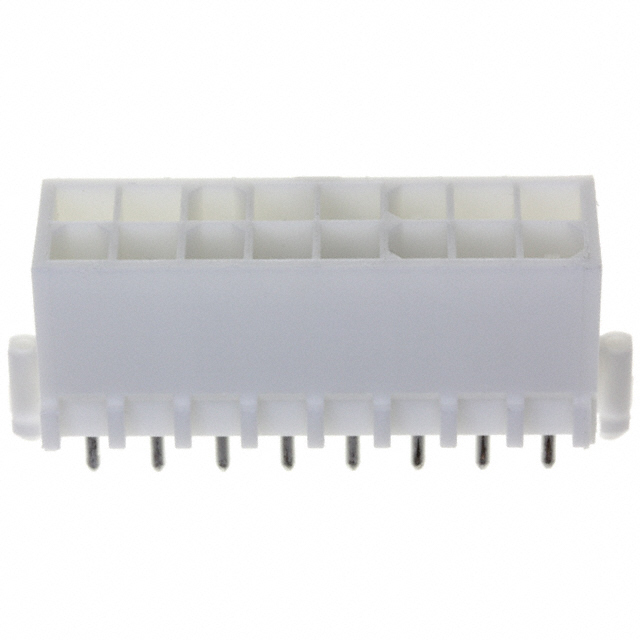

The 1-794068-0 is a vertical wire-to-board header from the Mini-Universal MATE-N-LOK series by TE Connectivity. It features 16 positions arranged in a dual-row configuration with a 4.14 mm pitch. The connector utilizes brass contacts with matte tin plating and a nylon insulation body rated UL 94 V-0. Designed for through-hole termination, it supports a maximum voltage of 600VAC and operates within a temperature range of -20°C to 85°C.

Headers, Male Pins Feature Summary

• Dual-row pin header design for high-density board connections
• Through-hole termination ensures secure PCB mounting
• Nylon insulation housing provides mechanical stability and flame resistance

Headers, Male Pins Applications

• General-purpose electronic equipment interconnects
• Industrial control system wiring
• Consumer appliance circuit boards

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability and compliance status. Ensure that the ordering suffix matches the required contact plating and housing color specifications. Cross-reference datasheet revisions to confirm material composition and environmental certifications prior to procurement.

Headers, Male Pins Selection Notes

Select this component when a 16-position, dual-row header is required for wire-to-board applications. The 4.14 mm pitch accommodates standard wire gauges suitable for general power and signal transmission. Verify that the 600VAC rating and -20°C to 85°C operating temperature align with the target system's electrical and thermal requirements.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK family, a widely used line of rectangular connectors known for reliability in various industrial and commercial environments. The series offers multiple position counts and row configurations, providing designers with flexible options for assembling complex circuit boards while maintaining consistent mechanical and electrical performance standards.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Generic equivalents may not match the precise 4.14 mm pitch or locking mechanism specifications required for proper assembly.
