1-794074-1

Headers, Male Pins Overview

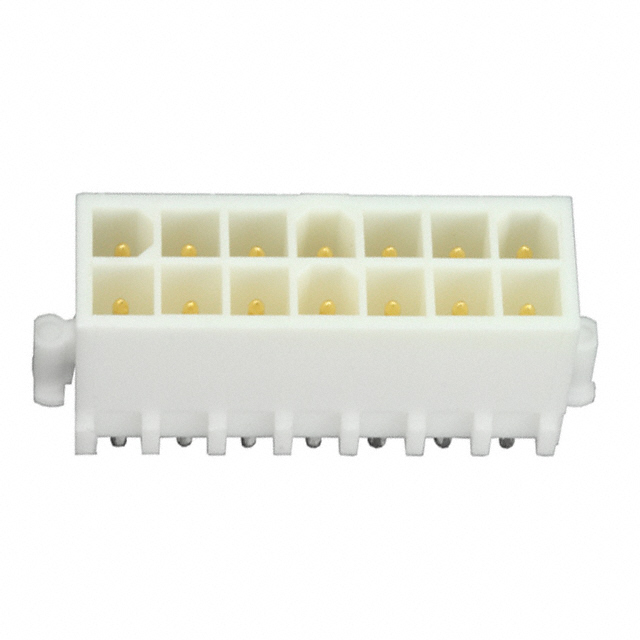

The 1-794074-1 is a male header connector from the MATE-N-LOK series by TE Connectivity AMP Connectors. It features 14 positions arranged in a dual-row configuration with a 4.14 mm pitch. Designed for through-hole mounting and solder termination, it utilizes tin-plated brass contacts housed in white nylon insulation. The component supports a rated voltage of 600VAC and operates within a temperature range of -55°C to 105°C, meeting UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for board-to-board or board-to-cable interconnections
• Tin-plated brass contacts ensure reliable electrical conductivity and corrosion resistance
• Nylon housing provides structural integrity and UL94 V-0 flame retardancy
• Through-hole solder termination facilitates secure PCB attachment

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• General-purpose electronic equipment connecting circuit boards
• Automotive electronics applications needing high current capacity
• Consumer appliances utilizing standard rectangular connector interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition, as variations exist within the MATE-N-LOK family. Ensure compatibility with mating socket connectors regarding pitch and row alignment. Confirm RoHS compliance status for the specific production batch if required by project specifications. Check for obsolescence notices or product change notifications that may affect long-term availability.

Headers, Male Pins Selection Notes

Select this component when a 14-position, dual-row header is required for high-voltage applications up to 600VAC. The 4.14 mm pitch accommodates standard wire gauges for moderate current loads. Consider the through-hole mounting style for mechanical stability over surface-mount alternatives. Evaluate the operating temperature range against environmental conditions to ensure performance reliability under thermal stress.

Headers, Male Pins Part Context

This part belongs to the MATE-N-LOK series, a widely used line of rectangular connectors known for durability and ease of assembly. The series offers various position counts and configurations to support diverse industrial and commercial needs. TE Connectivity AMP Connectors manufactures these components to meet rigorous quality standards for electrical interconnectivity.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with existing mating sockets before considering alternative sources. Consult official TE Connectivity resources for potential end-of-life management options.
