1-794079-0

Headers, Male Pins Overview

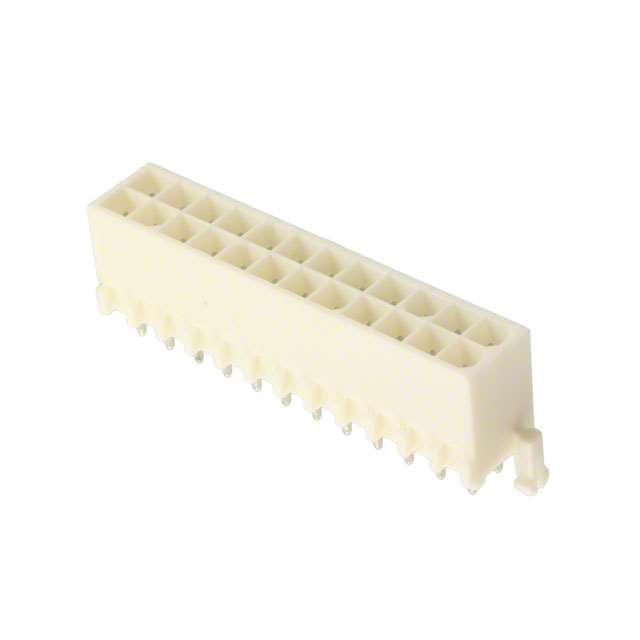

The 1-794079-0 is a vertical pin header from the Mini-Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features 24 positions arranged in a dual-row configuration with a 4.14 mm pitch. The connector utilizes brass contacts with gold plating for reliable signal transmission and is designed for through-hole termination on printed circuit boards. Constructed with a nylon housing, it supports an operating temperature range of -55°C to 105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual-row vertical header design for compact board space utilization
• Gold-plated brass contacts ensure stable electrical connectivity
• Nylon housing provides structural integrity and thermal resistance

Headers, Male Pins Applications

• Industrial control system interconnections
• General-purpose electronic equipment wiring
• Signal distribution in multi-channel applications

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required dual-row configuration and 4.14 mm pitch specifications. Confirm compatibility with mating sockets within the Mini-Universal MATE-N-LOK family. Ensure through-hole mounting methods align with PCB fabrication capabilities. Check for any recent product change notices affecting material composition or packaging.

Headers, Male Pins Selection Notes

Select this component when high-density vertical connections are required in industrial environments. The dual-row layout maximizes pin count within a limited footprint. Gold plating is suitable for applications requiring corrosion resistance and low contact resistance. Verify that the 600VAC rating and current capacity meet the specific circuit requirements before integration.

Headers, Male Pins Part Context

This component belongs to the Mini-Universal MATE-N-LOK series, which offers cost-effective grouping of multiple leads. It serves as a standard solution for general-purpose interconnects where reliability and ease of assembly are prioritized. The series is widely used across various sectors requiring robust rectangular connectors.

Headers, Male Pins Replacement Considerations

The 1-794079-0 is functionally compatible with other Mini-Universal MATE-N-LOK headers sharing the same 24-position dual-row specification and 4.14 mm pitch. Ensure mating socket counterparts are verified for mechanical fit and electrical performance.
