Headers, Male Pins Overview

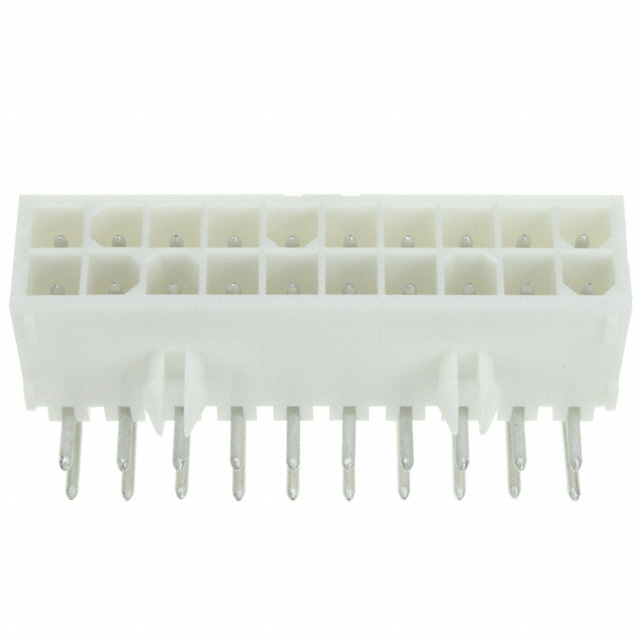

TE Connectivity AMP Connectors part number 1-794106-0 is a rectangular connector header from the Mini-Universal MATE-N-LOK series. It features male pin contacts with a 0.163-inch (4.14mm) mating pitch and a 20-position configuration. The connector utilizes a shrouded four-wall housing design for alignment and protection. Termination is achieved through soldering, suitable for board-to-cable or wire applications. The component operates within a temperature range of -20°C to 85°C and supports a rated voltage of 600VAC.

Headers, Male Pins Feature Summary

• Mini-Universal MATE-N-LOK series rectangular connector
• Male pin contact type with shrouded four-wall housing
• Solder termination for reliable board attachment
• Designed for board-to-cable or wire interconnects

Headers, Male Pins Applications

• General electronic equipment wiring
• Industrial control systems
• Consumer appliance connections
• Automotive electronics assemblies

Headers, Male Pins Procurement Notes

Verify current availability status as supply conditions may vary. Confirm RoHS compliance and environmental certifications against specific project requirements. Ensure proper handling procedures are followed during storage and installation to maintain connector integrity and performance specifications.

Headers, Male Pins Selection Notes

Select this component for applications requiring a 20-position header with a 4.14mm pitch. The shrouded design aids in precise mating. Verify that the solder termination method aligns with the manufacturing process. Consider thermal and electrical ratings to ensure compatibility with the target circuit environment.

Headers, Male Pins Part Context

The 1-794106-0 belongs to the Mini-Universal MATE-N-LOK family, widely used in commercial and industrial sectors. This series provides robust connectivity solutions with standardized dimensions. TE Connectivity manufactures these components to meet rigorous quality standards for diverse electronic interconnection needs.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference mating pitches and contact configurations when evaluating alternatives. Ensure any replacement maintains identical mechanical and electrical specifications for seamless integration.
