1-794488-1

Headers, Male Pins Overview

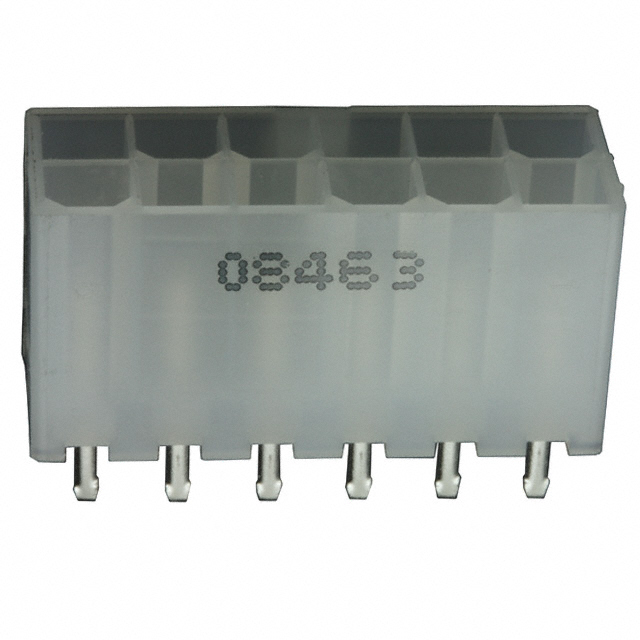

The 1-794488-1 is a vertical pin header manufactured by TE Connectivity under the AMP brand. It belongs to the MATE-N-LOK series and features a dual-row configuration with 12 positions. The connector utilizes a 4.14 mm pitch for male pin contacts. Designed for printed circuit board (PCB) mounting, it employs a through-hole termination method. The housing is constructed from white nylon material rated UL 94 V-0 for flammability. Electrical specifications include a voltage rating of 600 V and a current rating of 9.5 A per contact.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for high-density PCB interconnections
• Through-hole termination ensures secure mechanical attachment to circuit boards
• UL 94 V-0 rated nylon housing provides thermal stability and fire resistance

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• Consumer electronics assemblies needing reliable signal routing
• Automotive electronic modules for internal component connectivity

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 1-794488-1 part number to ensure correct 12-position dual-row configuration. Confirm compatibility with mating socket connectors within the same MATE-N-LOK series. Check RoHS compliance status against project requirements. Ensure PCB footprint dimensions align with the 4.14 mm pitch specification before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, dual-row header is required for 600 V applications. The 9.5 A current rating suits moderate power transmission needs. Consider the through-hole mounting style if surface-mount alternatives are unsuitable. Verify that the 4.14 mm pitch fits the available board space constraints compared to smaller pitch options.

Headers, Male Pins Part Context

This component is part of the extensive MATE-N-LOK family produced by TE Connectivity. The series is known for its versatile terminal block and header solutions used across various industries. The 1-794488-1 specifically addresses the need for vertical interconnection in compact spaces while maintaining high electrical ratings typical of the broader AMP connector portfolio.

Headers, Male Pins Replacement Considerations

Cross-reference with other 12-position dual-row headers in the MATE-N-LOK series. Ensure any substitute maintains the 4.14 mm pitch and 600 V rating. Verify identical mounting orientation and termination type to guarantee mechanical fit.
