Description：CONN HEADER R/A 6POS 4.2MM
Series：AMP-DUAC
Mfr：TE Connectivity AMP Connectors
Package：Box,Box

SKU:6bf1cddb9891 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794528-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 6POS 4.2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794528-1

Description：CONN HEADER R/A 6POS 4.2MM
Series：AMP-DUAC
Mfr：TE Connectivity AMP Connectors
Package：Box,Box
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.394" (10.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：150.0µin (3.81µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：-
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-794528-1

1-794528-1

Headers, Male Pins Overview

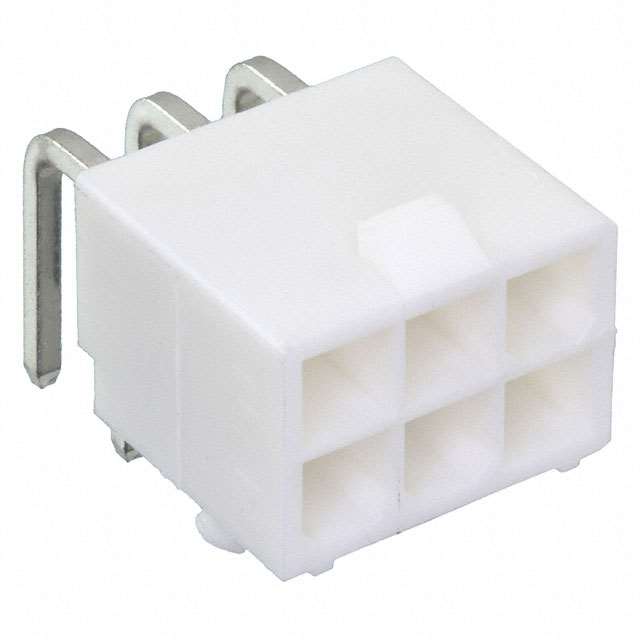

The TE Connectivity AMP Connectors part number 1-794528-1 is a rectangular header connector belonging to the AMP-DUAC series. It features a right-angle through-hole mounting style with 6 positions arranged in a single row. The connector utilizes a 0.165-inch (4.20mm) mating pitch and square contact shapes. Constructed with copper alloy contacts featuring tin plating, it is housed in white polyamide insulation rated UL94 V-0. This component is designed for board-to-board or cable applications.

Headers, Male Pins Feature Summary

Right-angle configuration facilitates compact vertical circuit board layouts
Through-hole termination ensures secure mechanical anchoring
Tin-plated copper alloy contacts provide reliable conductivity

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board assemblies
General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify current lifecycle status as this component may be obsolete. Confirm exact pin count and pitch compatibility with mating counterparts. Ensure environmental ratings meet operational requirements. Check for authorized replacement part numbers if production continuity is required. Validate packaging specifications against assembly line needs.

Headers, Male Pins Selection Notes

Select based on right-angle orientation and specific pin count requirements. Verify that the 4.20mm pitch matches existing design constraints. Consider the through-hole mounting method for robustness. Evaluate the tin contact finish for suitable corrosion resistance. Assess the polyamide housing material for thermal stability.

Headers, Male Pins Part Context

This component belongs to the AMP-DUAC series of rectangular connectors manufactured by TE Connectivity AMP Connectors. The series offers various configurations for different connection densities. The 1-794528-1 specifically addresses needs for low-count, right-angle connections within electronic assemblies requiring durable through-hole attachment.
