1-794621-0

$1.12

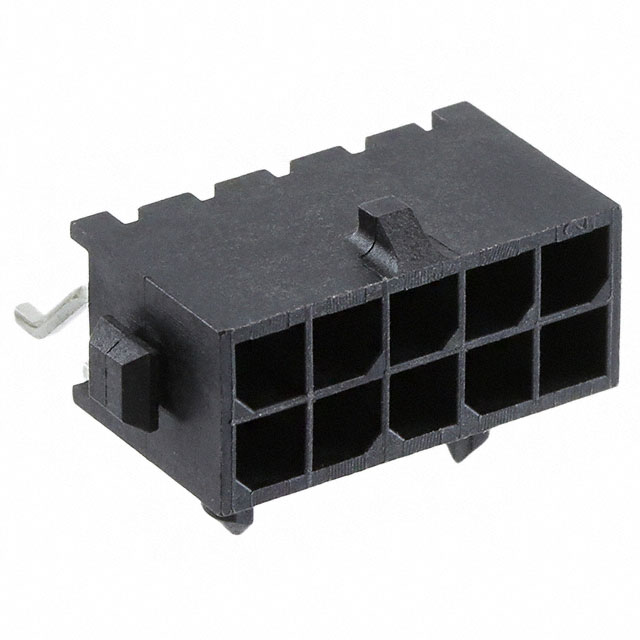

Description：CONN HEADER SMD R/A 10POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:778c7248d692 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794621-0 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD R/A 10POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794621-0

Description：CONN HEADER SMD R/A 10POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.290" (7.37mm)
Contact Shape：Square
Contact Finish - Mating：Tin-Lead
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin-Lead
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794621-0

1-794621-0

Headers, Male Pins Overview

The 1-794621-0 is a Micro MATE-N-LOK series header connector manufactured by TE Connectivity AMP Connectors. It features a vertical through-hole mounting style with an 8-position configuration arranged in two rows. The mating pitch is 0.118 inches (3.00 mm), and the contact length is 0.125 inches (3.18 mm). The housing height measures 0.364 inches (9.25 mm). Contacts are square-shaped male pins with gold or gold-pallium plating, while posts are tin-plated brass. The insulator is black polyamide rated UL94 V-0, operating between -40°C and 105°C at 250V.

Headers, Male Pins Feature Summary

Micro MATE-N-LOK series design for reliable multi-lead grouping
Four-wall shielded cover for enhanced protection
Slide-lock fastening mechanism for secure engagement

Headers, Male Pins Applications

Board-to-cable connections
Wire-to-board interconnects
General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify component authenticity against official TE Connectivity documentation due to discontinued status. Confirm substitute part numbers such as 3-794631-8 for availability. Ensure replacement specifications match original electrical ratings and mechanical dimensions before integration into production lines.

Headers, Male Pins Selection Notes

Select this connector for applications requiring robust rectangular headers with slide-lock security. Consider the specific pin count and pitch requirements for board layout compatibility. Evaluate thermal and voltage ratings against operational environments to ensure long-term reliability within the specified temperature range.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, known for cost-effective and reliable connection solutions. The series supports various pin counts and orientations, widely used in industrial and commercial electronics. TE Connectivity continues to support legacy designs through approved substitutes.
