1-794626-2

Headers, Male Pins Overview

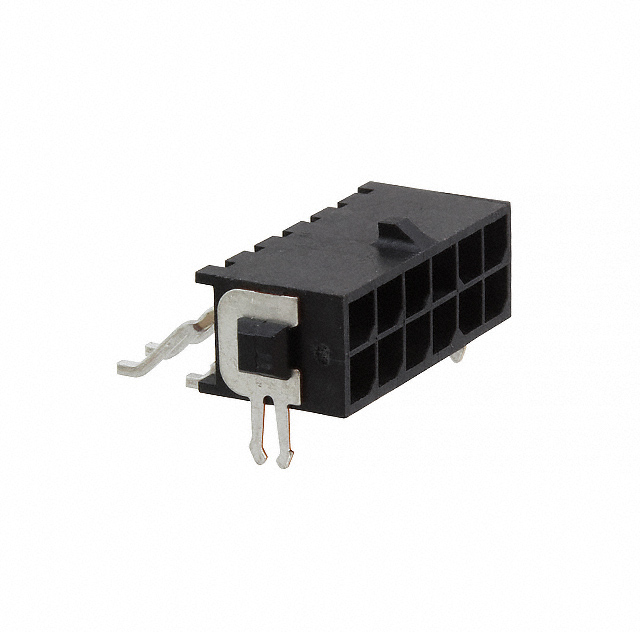

The 1-794626-2 is a Micro MATE-N-LOK header assembly manufactured by TE Connectivity AMP Connectors. It features a 12-position, 2-row configuration with a 3 mm (0.118 inch) pitch. Designed for surface mount technology, it utilizes right-angle termination to facilitate board-to-cable or wire connections. The connector incorporates a shrouded four-wall housing constructed from black nylon, ensuring secure pin alignment and protection. Male pins are fabricated from brass with gold plating to guarantee reliable electrical contact. Rated for 250 V and 5 A, the unit meets UL 94 V-0 flammability standards for enhanced safety in electronic assemblies.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Shrouded four-wall housing for precise pin alignment
• Gold-plated male contacts for reliable conductivity
• UL 94 V-0 rated nylon insulation for fire safety

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• General electronic equipment headers
• Industrial control system interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm RoHS compliance status as documentation may vary. Validate package quantity against current distributor specifications. Ensure storage conditions preserve solderability prior to reflow processes.

Headers, Male Pins Selection Notes

Select this model for applications requiring robust surface mount connectivity with high current capacity. The right-angle form factor optimizes spatial efficiency on dense circuit boards. Gold plating ensures longevity in demanding environments. Verify mating socket compatibility within the Micro MATE-N-LOK series before integration.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, known for versatile power and signal transmission. TE Connectivity AMP Connectors provides extensive rectangular connector solutions. The series supports various position counts and termination styles for diverse industrial needs.

Headers, Male Pins Replacement Considerations

Direct substitutes include 4-794626-2 (12-position variant) and 1-794626-0 (10-position variant). Cross-reference pin count and pitch dimensions carefully. Verify housing color and flammability ratings match original design requirements.
