Headers, Male Pins Overview

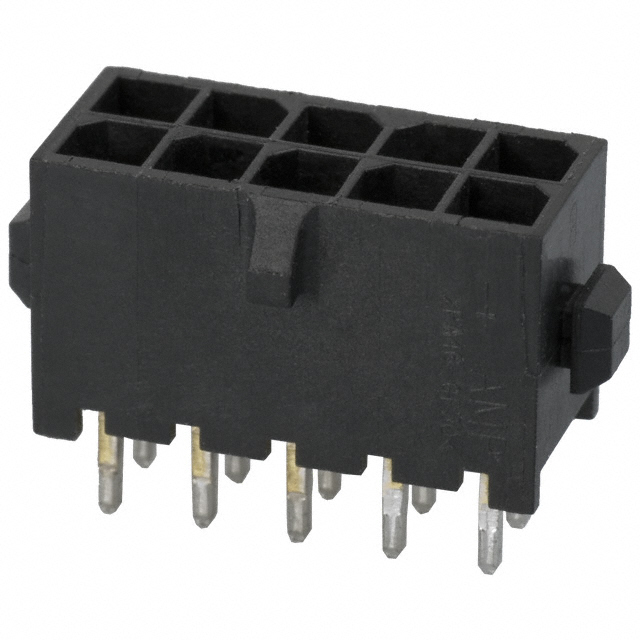

The TE Connectivity AMP Connectors part number 1-794630-0 is a vertical wire-to-board rectangular header connector. It features a dual-row configuration with ten positions and a 3mm (0.118 inch) pitch. The housing is constructed from black glass-filled nylon, providing structural stability. Contacts are made of brass with tin plating to ensure reliable electrical conductivity. This component is designed for surface-mount or through-hole PCB integration in high-density interconnect applications.

Headers, Male Pins Feature Summary

• Dual-row vertical pin header design for compact circuit board layouts
• Tin-plated brass contacts for dependable signal transmission
• Black glass-filled nylon housing for mechanical durability

Headers, Male Pins Applications

• High-density electronic interconnect systems
• Wire-to-board circuit assembly
• Industrial control equipment connections

Headers, Male Pins Procurement Notes

Verify the exact manufacturer part number against official TE Connectivity documentation before procurement. Confirm that the tin-plated contact finish and glass-filled nylon housing material align with specific project requirements. Ensure compatibility with standard PCB mounting processes for vertical headers. Cross-reference datasheet specifications to validate performance parameters for the intended operational environment.

Headers, Male Pins Selection Notes

Select this connector when a low-profile, dual-row vertical header is required for dense wiring configurations. The 3mm pitch accommodates standard trace spacing on printed circuit boards. Tin plating offers cost-effective conductivity suitable for general-purpose signals. Verify that the mechanical locking features of the housing meet the assembly stress requirements.

Headers, Male Pins Part Context

This component belongs to the AMP Soft Shell series of connectors, engineered for robust connectivity in demanding environments. The product line emphasizes high-density solutions with reliable mating cycles. TE Connectivity designs these headers to support efficient manufacturing processes while maintaining consistent electrical performance across various industrial and commercial sectors.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Generic rectangular headers may not match the specific 3mm pitch or housing material properties. Ensure any substitute maintains identical row count, position quantity, and contact orientation to preserve board layout integrity.
