1-794636-6

$2.85

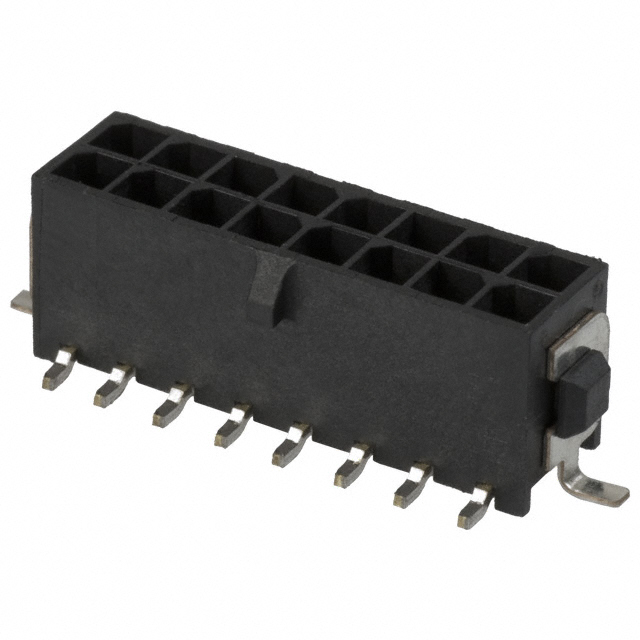

Description：CONN HEADER SMD 16POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8ca04503f49d Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794636-6 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD 16POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794636-6

Description：CONN HEADER SMD 16POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.364" (9.25mm)
Contact Shape：Square
Contact Finish - Mating：Tin-Lead
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin-Lead
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Solder Retention
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794636-6

1-794636-6

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-794636-6 is a header assembly belonging to the Micro MATE-N-LOK series. It features six positions arranged in two rows with a 3 mm pitch. The connector utilizes male pin contacts made of brass with tin plating. Designed for surface mount technology, it employs a vertical through-hole termination style. The housing is constructed from nylon and meets UL 94 V-0 flammability standards. Rated for 250 V and 5 A, this component serves as a board-to-board or board-to-wire interconnection solution within electronic assemblies.
