1-87224-0

Headers, Male Pins Overview

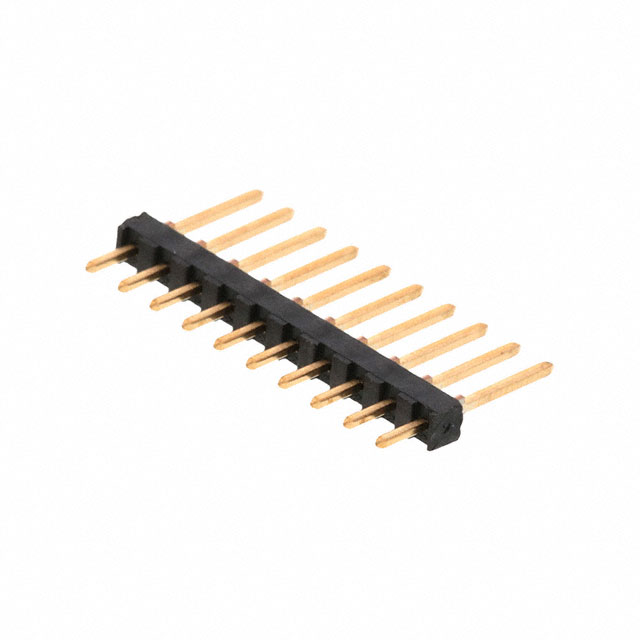

The TE Connectivity AMP Connectors part number 1-87224-0 is a vertical board-to-board header from the AMPMODU Mod II series. It features 10 positions in a single row with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole termination for secure PCB mounting and employs gold-plated copper alloy contacts to ensure reliable signal transmission. Designed for free-hanging applications, it operates within a temperature range of -65°C to 105°C. The housing is constructed from thermoplastic material rated UL94 V-0 for flammability, presented in black color.

Headers, Male Pins Feature Summary

• Vertical board-to-board configuration designed for direct PCB interconnection
• Gold-plated copper alloy contacts provide durable conductive pathways
• Through-hole termination ensures stable mechanical attachment to the circuit board

Headers, Male Pins Applications

• High-density electronic assembly interconnections
• Industrial control system circuit boards
• Telecommunications equipment internal connections

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 10-position variant, as the AMPMODU series includes other pin counts. Confirm the vertical orientation requirement aligns with the design layout. Ensure the manufacturing source is authorized to guarantee compliance with the specified UL94 V-0 rating and material standards.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54mm pitch header is required for vertical mounting. The gold plating makes it suitable for environments where corrosion resistance is critical. Consider the through-hole installation method if surface-mount alternatives are unsuitable for the mechanical stress requirements of the application.

Headers, Male Pins Part Context

This component belongs to the AMPMODU Mod II family, a widely used standard for rectangular connectors. The series offers various position counts and configurations, allowing designers to scale connectivity needs while maintaining consistent spacing and mechanical interface standards across different product lines.

Headers, Male Pins Replacement Considerations

Compatible substitutes include 87224-2 and 87224-3, which share the same AMPMODU Mod II specifications but differ in contact count.
