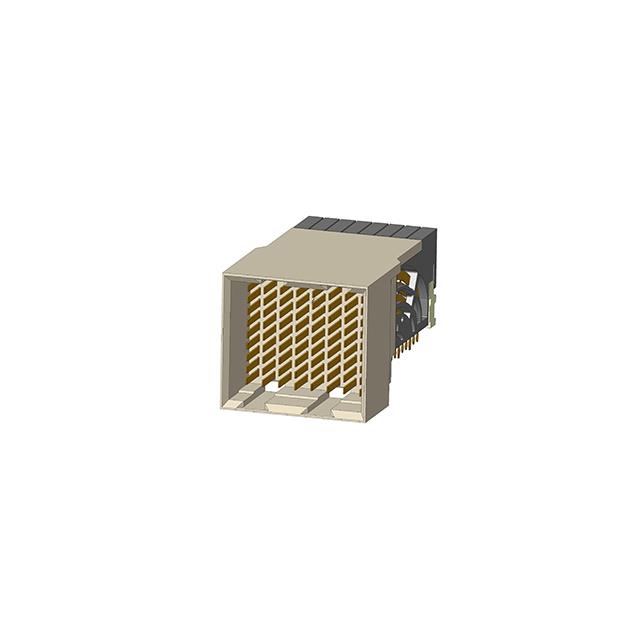

Specialized Backplane Connectors 10140923-102LF product image

10140923-102LF

Description：AIRMAX VS2 RAH 3X8-4W SML NLG
Series：Airmax VSe®
Mfr：Amphenol ICC (FCI)
Package：Tube

SKU:6548ce2dba77 Category: Specialized Backplane Connectors Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10140923-102LF is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is AIRMAX VS2 RAH 3X8-4W SML NLG. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for 10140923-102LF

Description：AIRMAX VS2 RAH 3X8-4W SML NLG
Series：Airmax VSe®
Mfr：Amphenol ICC (FCI)
Package：Tube
Connector Usage：Daughtercard
Connector Type：Header, Male Pins
Connector Style：High Speed
Number of Positions：72
Number of Positions Loaded：All
Pitch：0.079" (2.00mm)
Number of Rows：9
Number of Columns：8
Mounting Type：Board Edge, Through Hole, Right Angle
Termination：Press-Fit
Contact Layout, Typical：24 Differential Pairs
Features：-
Contact Finish：Gold, GXT™
Contact Finish Thickness：-
Color：Natural

Specialized Backplane Connectors datasheet and documents for 10140923-102LF

10140923-102LF
