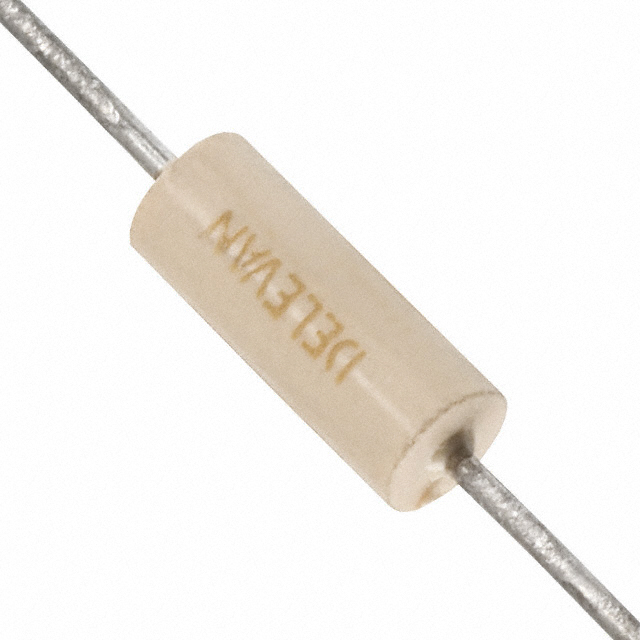

1026-08K

$1.16

Description：FIXED IND 47NH 1.8A 45 MOHM TH
Series：1026
Mfr：Delevan
Package：Tape & Reel (TR)

SKU:c0c2159c78f2 Category: Fixed Inductors Brand: Delevan

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1026-08K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delevan. Its product description is FIXED IND 47NH 1.8A 45 MOHM TH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 1026-08K

Description：FIXED IND 47NH 1.8A 45 MOHM TH
Series：1026
Mfr：Delevan
Package：Tape & Reel (TR)
Type：Molded
Material - Core：Phenolic
Inductance：47 nH
Tolerance：±10%
Current Rating (Amps)：1.8 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：45mOhm Max
Q @ Freq：40 @ 25MHz
Frequency - Self Resonant：800MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：25 MHz
Mounting Type：Through Hole
Package / Case：Axial
Supplier Device Package：-
Size / Dimension：0.095" Dia x 0.250" L (2.41mm x 6.35mm)
Height - Seated (Max)：-

Fixed Inductors datasheet and documents for 1026-08K

1026-08K

Fixed Inductors Overview

The Delevan 1026-08K is a fixed axial leaded inductor designed for general-purpose applications. It features an unshielded molded construction with a phenolic core material. The component provides an inductance of 47 nH with a tolerance of ±10%. It supports a maximum DC current of 1.8 A and has a maximum DC resistance of 45 mOhms. The self-resonant frequency reaches 850 MHz, and it operates within a temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

Unshielded molded design utilizing a phenolic core for stable performance
Axial through-hole termination style suitable for standard PCB mounting
High self-resonant frequency capability for RF signal handling

Fixed Inductors Applications

RF circuits requiring low inductance values
General purpose filtering applications
Signal processing in electronic assemblies

Fixed Inductors Procurement Notes

Verify component authenticity and datasheet alignment when sourcing this Delevan part. Confirm that the axial package dimensions and lead specifications match your board layout requirements. Ensure the unshielded nature does not interfere with nearby sensitive components in the final assembly design.

Fixed Inductors Selection Notes

Select this inductor for designs needing a compact axial component with high current handling relative to its small inductance value. The phenolic core offers cost-effective stability for non-critical RF paths. Consider the unshielded construction regarding potential electromagnetic interference in dense layouts.

Fixed Inductors Part Context

This component belongs to the Delevan 1026 series of fixed inductors. These parts are characterized by their molded construction and axial leads, distinguishing them from surface mount alternatives. The series caters to traditional through-hole manufacturing processes while providing specific RF characteristics.
