104071-1

Headers, Male Pins Overview

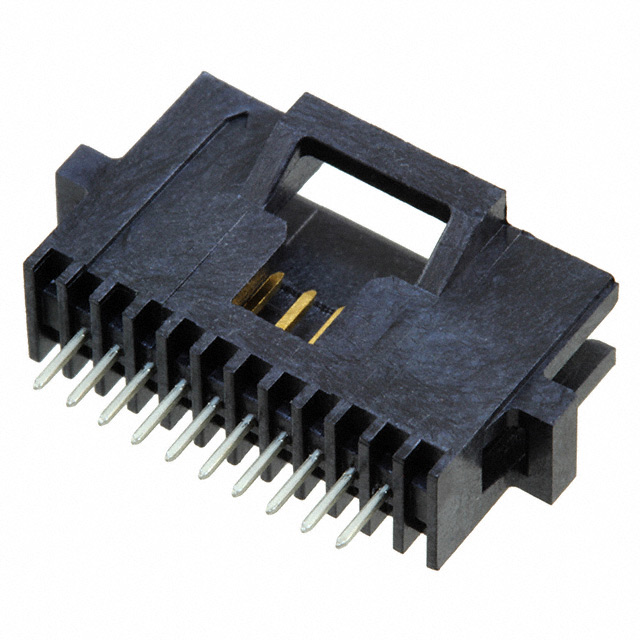

TE Connectivity AMP Connectors part number 104071-1 is a rectangular connector component belonging to the AMPMODU System 50 series. It functions as a header receptacle designed for printed circuit board applications. The unit features male pin contacts with a round pin-sleeve style, constructed from phosphor bronze material and finished with a tin/lead (Sn/Pb) plating. This specific configuration supports through-hole mounting techniques for secure attachment to substrates.

Headers, Male Pins Feature Summary

• Male contact gender ensures reliable mating interface within the AMPMODU System 50 ecosystem
• Round pin-sleeve terminal style provides standardized mechanical engagement geometry
• Phosphor bronze contact material offers structural integrity and conductivity
• Tin/lead surface finish facilitates solderability during assembly processes

Headers, Male Pins Applications

• Data technology equipment interconnects
• Medical technology device assemblies
• General industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify compliance requirements prior to ordering, as this component utilizes tin/lead plating which may restrict usage in RoHS-regulated environments. Confirm that the manufacturing source explicitly permits leaded finishes for your specific application standards. Ensure the procurement channel sources directly from authorized TE Connectivity distributors to guarantee authenticity and traceability of the batch.

Headers, Male Pins Selection Notes

Select this part when utilizing the AMPMODU System 50 architecture for board-to-board or wire-to-board connections requiring robust mechanical retention. The through-hole installation method suits high-vibration environments where solder joint strength is critical. Consider the tin/lead composition carefully if environmental regulations prohibit heavy metals in your final product design.

Headers, Male Pins Part Context

The AMPMODU System 50 series represents a foundational line of rectangular connectors developed by TE Connectivity AMP Connectors. This system has been widely adopted across various industries for its versatility and reliability. Part 104071-1 serves as a standard header receptacle within this extensive family, providing a consistent interface solution for engineers designing electronic systems that require durable interconnection points.

Headers, Male Pins Replacement Considerations

Compatible substitutes include TE Connectivity part numbers 1-104071-0 and 5-104071-1, which share similar AMPMODU System 50 characteristics. Cross-referencing these alternatives requires verifying identical pin configurations and mounting styles to ensure functional interchangeability without redesigning the host circuit board.
