1053142810

Headers, Male Pins Overview

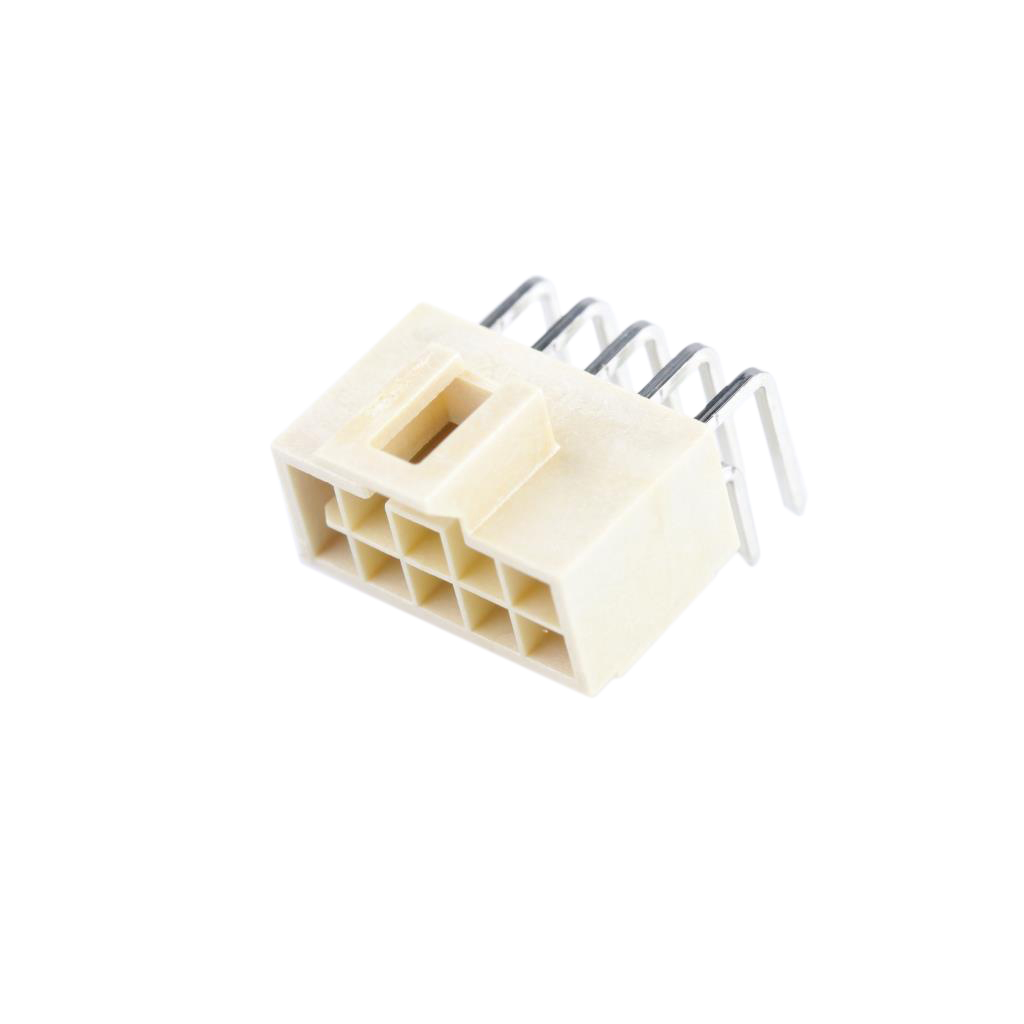

The Molex 1053142810 is a wire-to-board header connector belonging to the Nano-Fit product family. It features a 2.5mm pitch and provides ten positions for electrical interconnection. The component utilizes a right-angle side entry configuration, allowing for efficient board space utilization in compact designs. It employs a through-hole solder termination method to ensure secure attachment to printed circuit boards. This connector is designed for power applications within the specified current and voltage ratings typical of the Nano-Fit series.

Headers, Male Pins Feature Summary

• Right-angle side entry design for optimized PCB layout
• Through-hole solder termination for robust mechanical fixation
• Nano-Fit series architecture supporting high-density connections

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Power distribution in compact industrial control systems
• Internal connectivity within telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific revision level and tape-and-reel packaging requirements against the official datasheet before ordering. Confirm that the right-angle orientation matches the assembly constraints. Ensure compatibility with mating terminals from the same Nano-Fit series to maintain proper engagement force and contact integrity.

Headers, Male Pins Selection Notes

Select this part when a low-profile, right-angle header is required for 2.5mm pitch applications. Consider the through-hole mounting style if surface-mount alternatives are unsuitable for the mechanical stress environment. Evaluate the current carrying capacity against the specific load requirements of the application circuit.

Headers, Male Pins Part Context

This component is part of the Nano-Fit series, which focuses on providing space-saving solutions for power connectors. The series addresses design challenges regarding exposed terminals and footprint efficiency. The 1053142810 variant specifically offers a ten-position configuration suitable for moderate power distribution needs.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-reference with other Nano-Fit headers only if pin count and pitch match exactly. Verify mechanical dimensions and termination type compatibility before considering alternative manufacturers.
